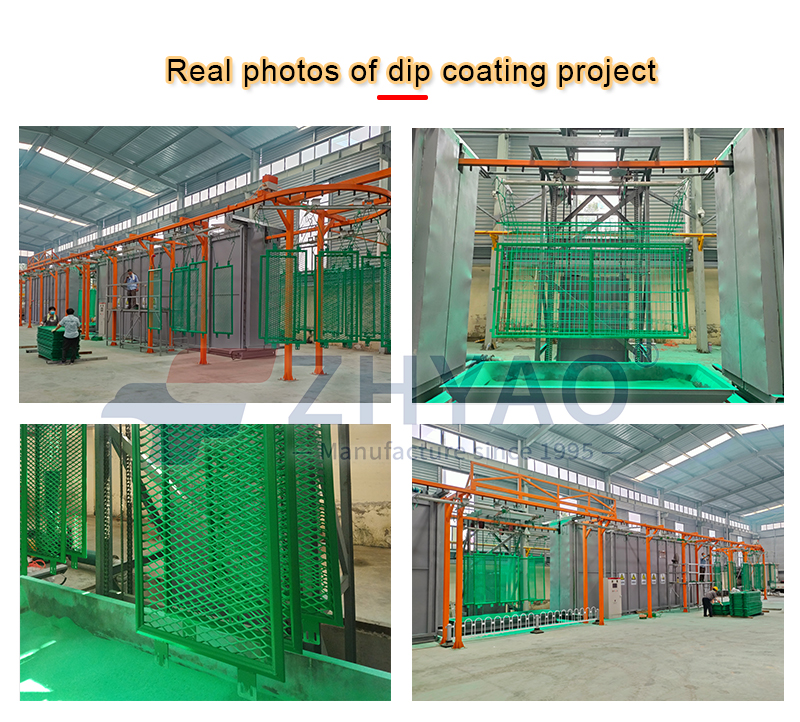

Product Overview

The Fluidized Bed Powder Coating Line is an advanced automated coating system based on the fluidized bed powder dip coating process, engineered to apply thick, uniform, and durable thermoplastic powder coatings on metal and heat‑resistant substrates.

This process preheats the workpiece and immerses it into a fluidized powder bed, where powder melts rapidly upon contact and forms a continuous protective layer. Compared with traditional powder coating or electrostatic spray systems, the Fluidized bed powder coating system delivers high transfer efficiency, thicker coatings, and excellent corrosion resistance — ideal for industrial protective applications and functional surface finishes.

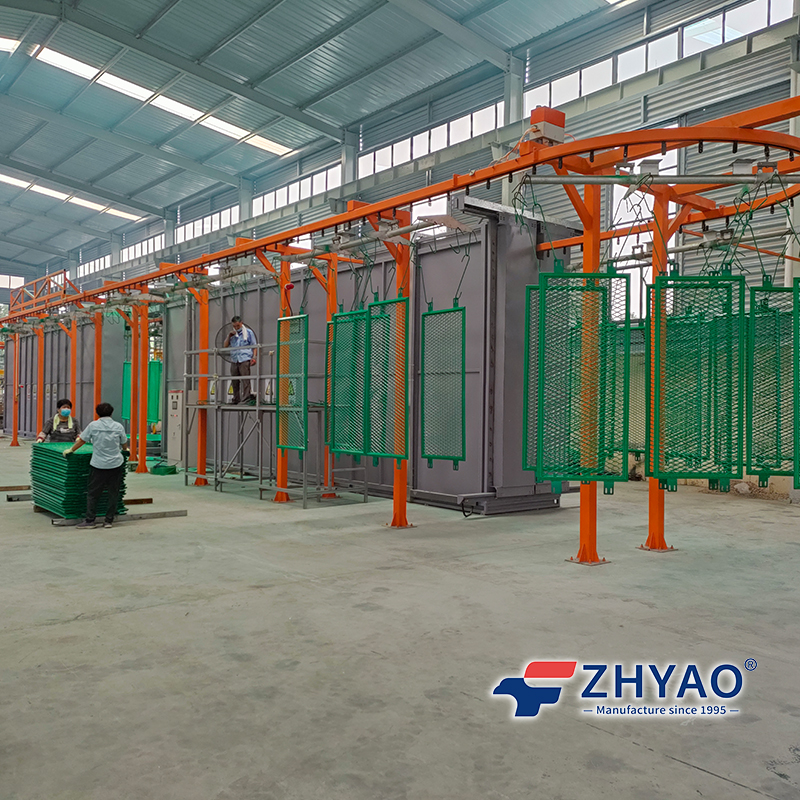

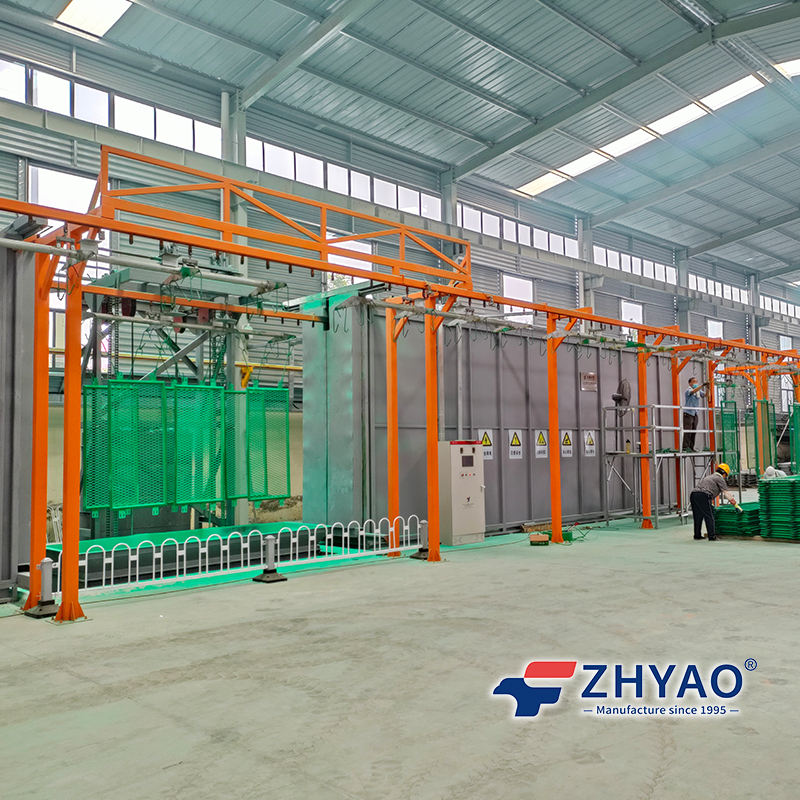

Line Composition & Working Process

A complete Fluidized Bed Powder Coating Line typically includes:

Pre‑treatment System: Surface cleaning and preparation for optimal adhesion

Workpiece Preheating Oven: Brings parts to required coating temperature

Fluidized Bed Powder Coating System: Creates uniform fluidized powder bed for immersion

Immersion & Lifting Mechanism: Controls dipping depth, speed, and dwell time

Post‑Heating / Curing Zone: Strengthens and stabilizes the coating

Cooling Section: Cools coated workpieces before unloading

Conveyor System: Automated transport for smooth production flow

This line configuration is flexible and can be tailored to customer requirements — including size, layout, and automation level.

zhyao-coatingline.com

Key Advantages

Uniform, Durable, and Thick Coatings

The fluidized bed powder coating system allows a single pass coating layer that is thicker and more protective than conventional methods, ideal for heavy‑duty protective applications.

High Powder Utilization and Cost Efficiency

Because excess powder is not wasted and minimal overspray occurs, the system functions efficiently as a powder dip coating line for metal products, reducing material costs and improving ROI.

Stable, Repeatable, and Automated Process

Advanced automation systems deliver consistent quality across batches, with easy operation and low maintenance.

Environmentally Friendly

The process is solvent‑free, supports high powder transfer efficiency, and adheres to environmental requirements without VOC emissions.

Ideal for Heavy‑Duty Protective Coating

This heavy‑duty protective coating line excels in applications requiring corrosion resistance and long‑term durability.

Applications by Industry

The Fluidized Bed Powder Coating Line is widely used in the following sectors:

Guardrail & Fencing Industry — highway guardrails, cartway fences

Hardware & Metal Products Industry — brackets, clamps, structural parts

Traffic Facility Industry — barrier protection, road safety structures

Pipe & Pipeline Fittings Industry — flanges, elbows, joints

Industrial Protective Components — heavy structural and safety parts

Typical products coated using this line include metal profiles, mesh panels, pipes, valves, and more — all benefiting from improved surface protection, durability, and visual quality.

Customization Capability

ZhanYao provides tailor‑made solutions for Fluidized Bed Powder Coating Lines, including:

Workpiece size, shape, and structural matching

Coating thickness and process parameter planning

Production speed and line automation configuration

Powder material adaptation

Plant layout and workflow optimization

Each solution is designed to match your production requirements and throughput expectations perfectly.

Why Choose ZhanYao？

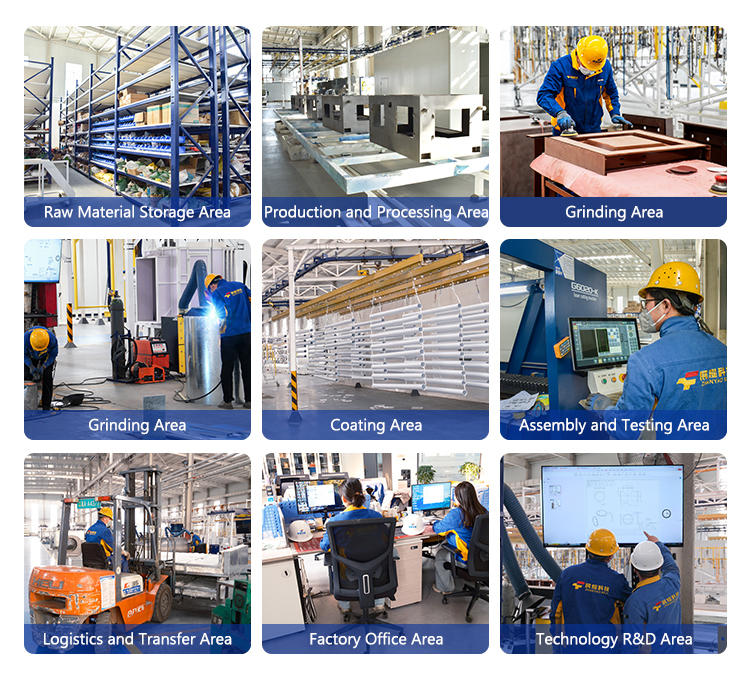

Experience & Expertise: Nearly 30 years of coating equipment design and manufacturing experience

zhyao-coatingline.com

Turnkey Service: Custom design, production, installation, and lifetime after‑sales support

Quality & Reliability: Strict quality control and tailored engineering ensure long‑term performance

Global Applications: Proven performance across industrial coating markets worldwide

Get a Tailored Solution

Looking for a reliable Fluidized Bed Powder Coating Line?
