High-Efficiency Powder Immersion Coating Solution for Complex Metal Parts

Product Overview

The Automatic Powder Dip Coating Line is a specialized coating system designed for uniform powder application through controlled immersion. Unlike conventional electrostatic spraying, this process allows powder to fully contact the workpiece surface, making it especially suitable for metal parts with complex structures, dense meshes, recessed areas, or internal cavities.

ZHYAO’s automatic powder dip coating line integrates precise temperature control, stable powder fluidization, and automated material handling to ensure consistent coating thickness, strong adhesion, and high production efficiency. The system is widely applied in industries such as wire mesh products, metal grilles, hardware components, and corrosion-resistant industrial parts.

Working Principle

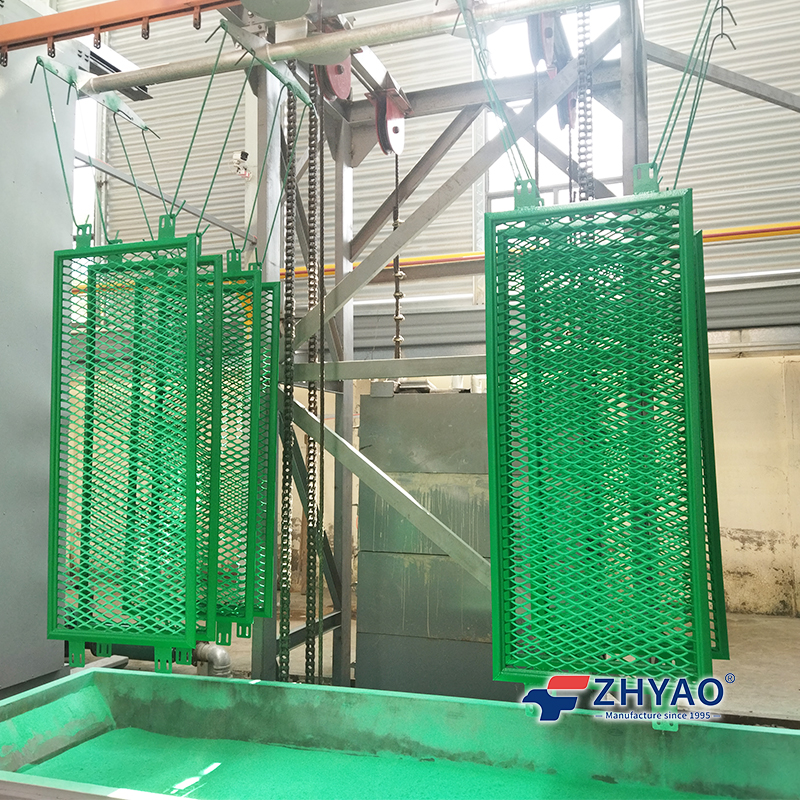

The process begins by preheating the metal workpieces to a controlled temperature. Once heated, the parts are automatically immersed into a fluidized powder bed. The powder particles melt instantly upon contact with the hot surface and form a continuous coating layer.

After immersion, excess powder falls back into the powder tank for recycling, followed by curing to achieve the final coating performance.

This immersion-based method ensures even coating on edges, corners, and hidden areas where traditional spraying may struggle.

Key System Components

Preheating Unit

Ensures stable and uniform heating of workpieces before immersion. Accurate temperature control directly affects coating thickness and surface quality.

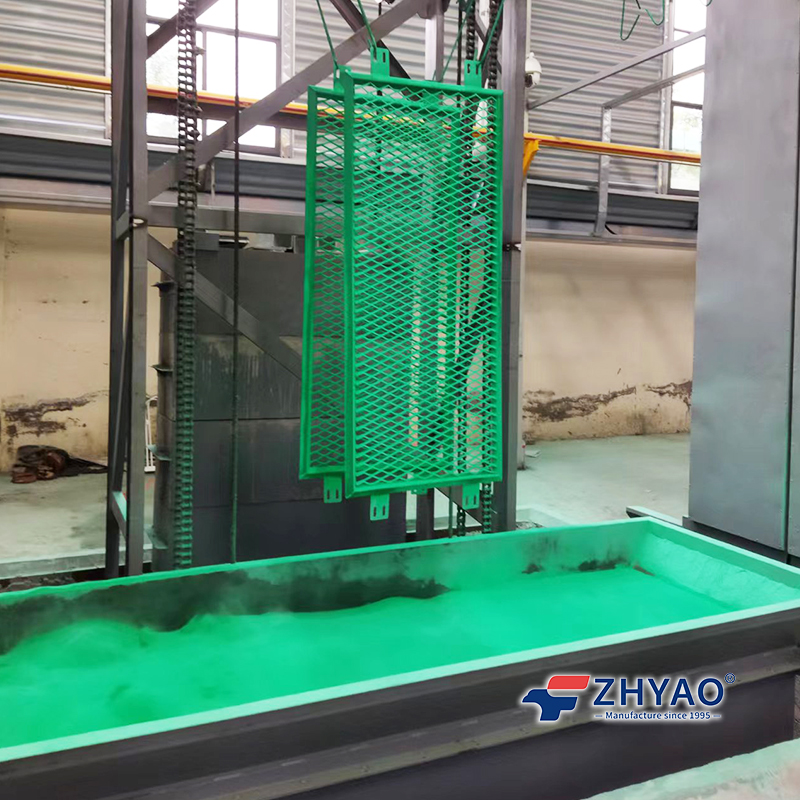

Powder Fluidized Bed

Designed with optimized air distribution and powder circulation structure to maintain stable powder fluidization and minimize material loss.

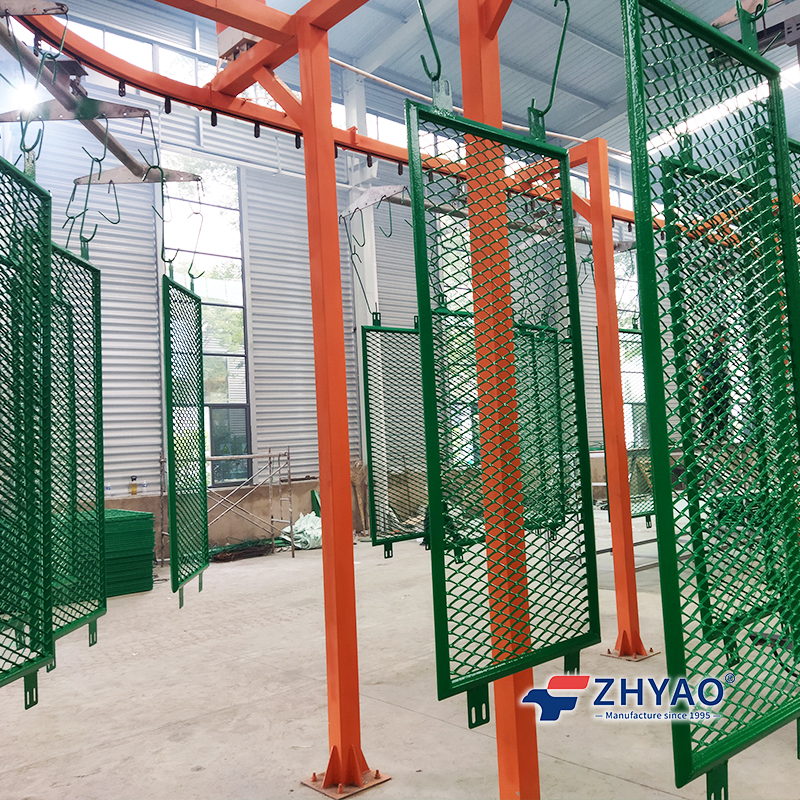

Automatic Conveying System

Supports continuous and stable production. The conveying speed and immersion time can be adjusted based on product size and coating requirements.

Curing Oven

Completes powder crosslinking to deliver excellent adhesion, hardness, and corrosion resistance.

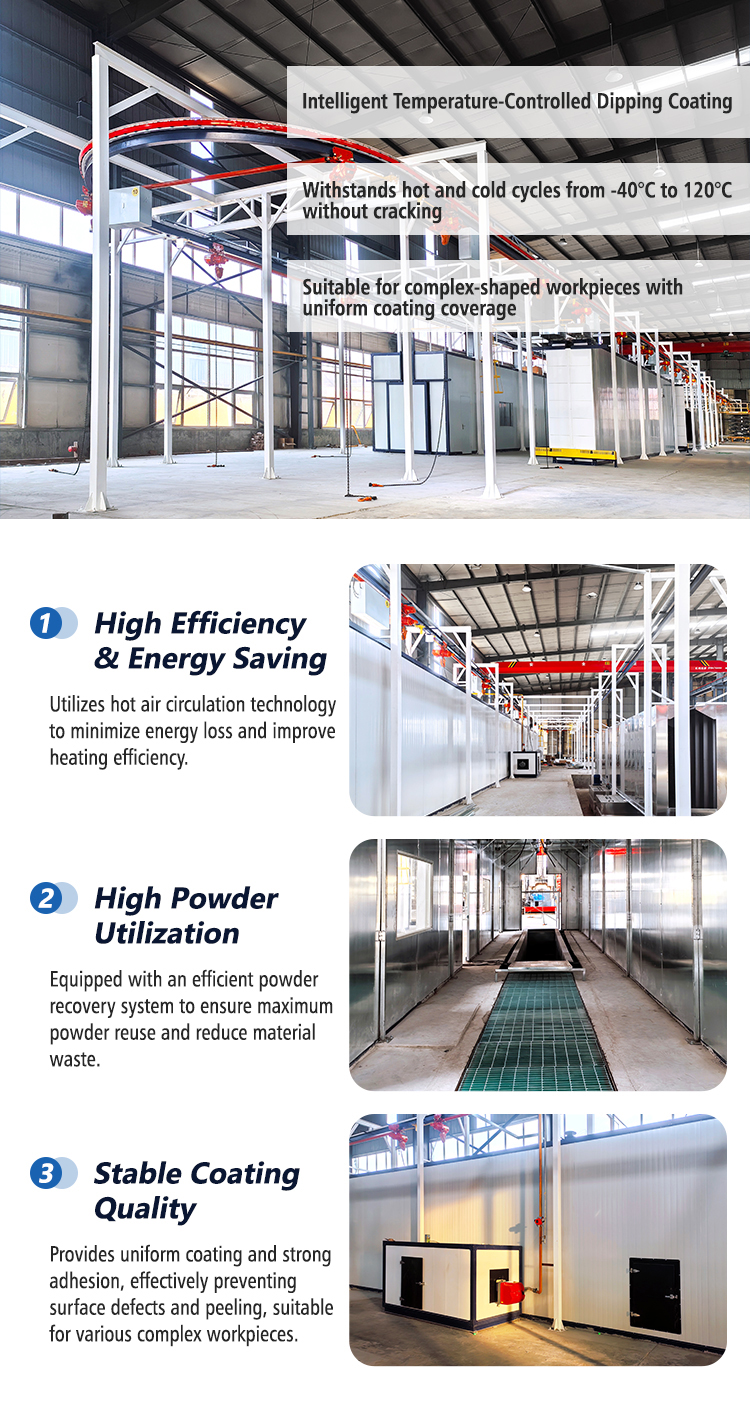

Technical Advantages

Uniform Coating Thickness

Immersion coating ensures consistent coverage, especially on complex or mesh-type products.

High Powder Utilization

Excess powder is naturally recycled, reducing waste and lowering operating costs.

Strong Coating Adhesion

Powder melts directly onto the heated substrate, forming a dense and durable coating layer.

Process Stability

Automated control minimizes human error and ensures repeatable coating quality.

Flexible Customization

Line configuration can be adapted to different product sizes, output requirements, and factory layouts.

Typical Applications

Wire mesh and expanded metal products

Metal grilles and protective fences

Industrial hardware components

Corrosion-resistant structural parts

Metal products with complex geometry or internal structures

Why Choose ZHYAO？

With over 30 years of manufacturing experience, ZHYAO specializes in the design and production of automated coating systems.

32 patented technologies supporting stable and efficient coating processes

Two large production bases ensuring manufacturing capacity and fast delivery

Three dedicated R&D centers continuously optimizing coating technology

2,600+ global project cases, covering multiple industries and application scenarios

From process planning to equipment manufacturing and on-site commissioning, ZHYAO provides complete and reliable powder coating solutions.

Project-Oriented Solution & Quotation

Each Automatic Powder Dip Coating Line is engineered based on actual production needs, including product type, coating thickness, output capacity, and workshop conditions.

If you are planning a new coating line or upgrading an existing system, feel free to contact ZHYAO for a customized technical proposal and detailed price quotation tailored to your project requirements.
