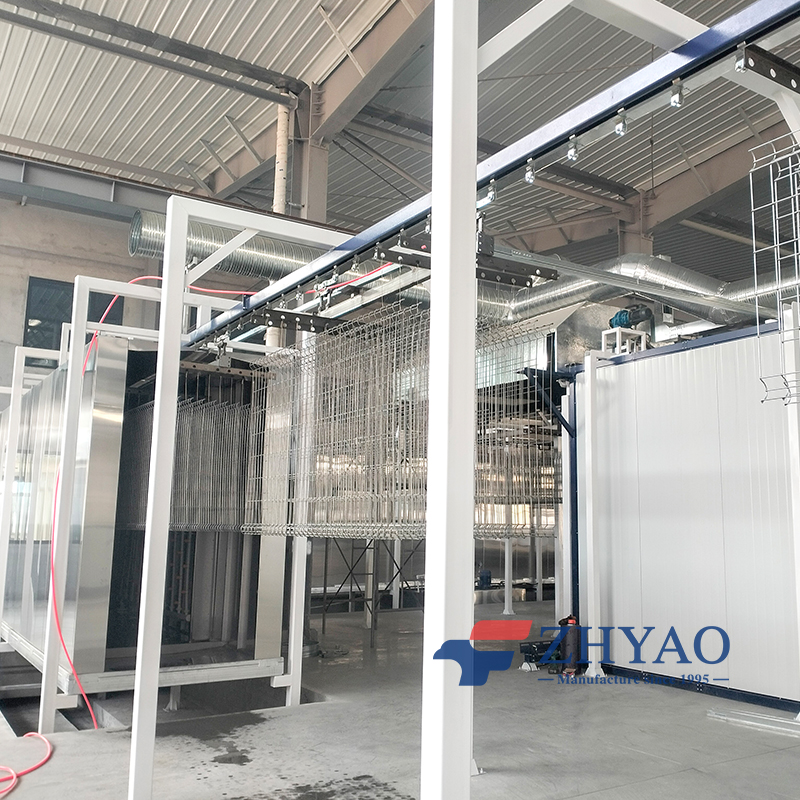

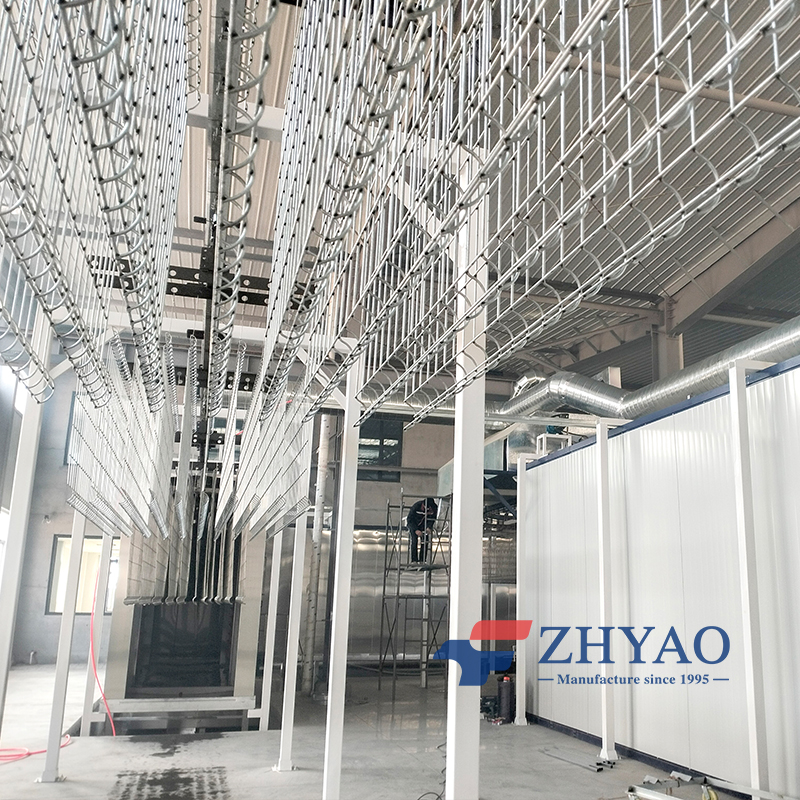

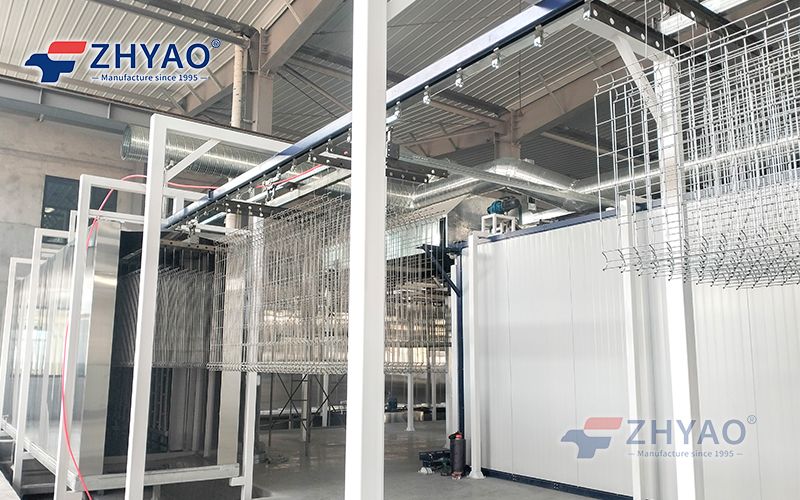

Product Overview 

Our Powder Dip Coating Line is a highly automated and customizable surface‑treatment production line designed for applying powder coatings or dip coatings to metal components of various sizes and shapes. It offers consistent coating quality, efficient processing and is suitable for structural parts including metal fences, railings, frames and other industrial workpieces.

Key Features 

Custom‑designed for your production requirements: tank size, conveyor length, hanging system, etc.

Automated control system including PLC and touch‑screen interface, enabling stable operation and minimal manual intervention.

Pre‑treatment, heating, dip‑immersion, curing, cooling integrated in one line to ensure uniform coating and reliable adhesion.

Adaptable to a wide range of work‑piece sizes and shapes — from railings and fences to metal frameworks and industrial racks.

Designed for outdoor‑use structural components: excellent corrosion resistance, weather‑resistance and colour options.

Maintenance‑friendly design: easy access for cleaning and servicing, low downtime.

Main Components 

Pre‑treatment system: alkaline/acid baths, rinsing, drying – preparing metal surfaces for coating.

Heating/Pre‑heating zone: raises work‑piece to required temperature for coating adhesion.

Dip tank & lift mechanism: immerses the workpiece into powder or liquid coating bath and lifts out.

Drip‑off & leveling section: allows excess coating to drain and form smooth surface.

Curing oven: high‑temperature zone to fuse the powder coating into a durable finish.

Cooling zone & conveyor: cools the coated item, transports to inspection and packaging.

Control panel & automation: touch‑screen, PLC, conveyor speed control, temperature monitoring.

Advantages

Consistent coating thickness and high repeatability ensure uniform appearance and protection.

High throughput potential with integrated automation: reduces labour cost and increases production efficiency.

Flexibility to process large or long items (such as highway guardrails, municipal fences) as well as smaller parts.

Designed for outdoor environments: coating and process meet the requirements for corrosion resistance and weather exposure.

Lower operating cost thanks to efficient material usage and recycling of excess coating.

Typical Applications 

Road and highway guardrails, railway fences and other large‑scale metal barriers.

Municipal fencing, park and garden fences, steel barrier systems.

Metal railing systems, stair balustrades, balustrade frames for buildings.

Industrial racks, shelving, metal cabinets, framework parts requiring durable coating.

Metal furniture, outdoor structures, architectural aluminum/steel profiles.

Why Choose This Line?

With decades of experience in coating equipment and surface‑treatment lines, our team provides full support from design and manufacturing to installation and after‑sales service. We help you match the coating line to your production scale, work‑piece types and quality requirements. Installation, training and lifetime service are included in the package.

We understand the demands of outdoor structural components such as fences and railings — our line is configured to meet those demands in corrosion resistance, long‑term performance and colour versatility.

Contact Us for a Quote 

Please share your factory layout, work‑piece dimensions, output per day/month, material type and preferred coating colours. We will provide a tailored solution matching your requirements.
