Products Description
We provide a customized turnkey powder coating system designed for stainless steel mesh, diamond mesh, and window screen mesh production.
Product Overview

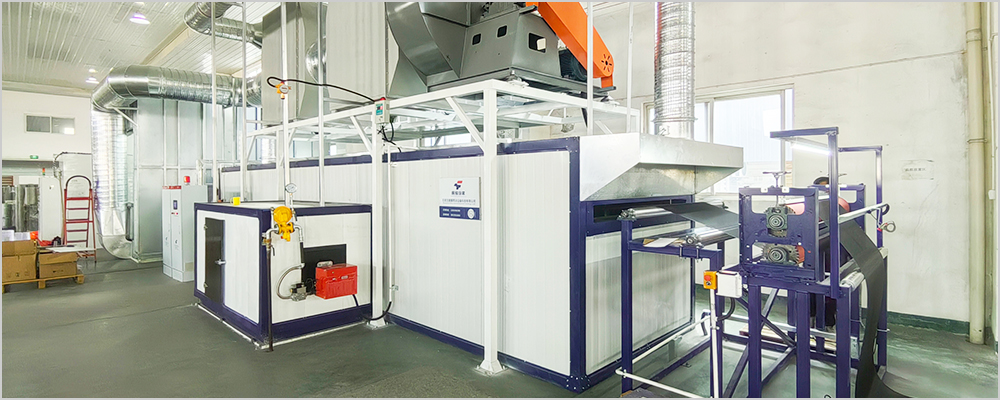

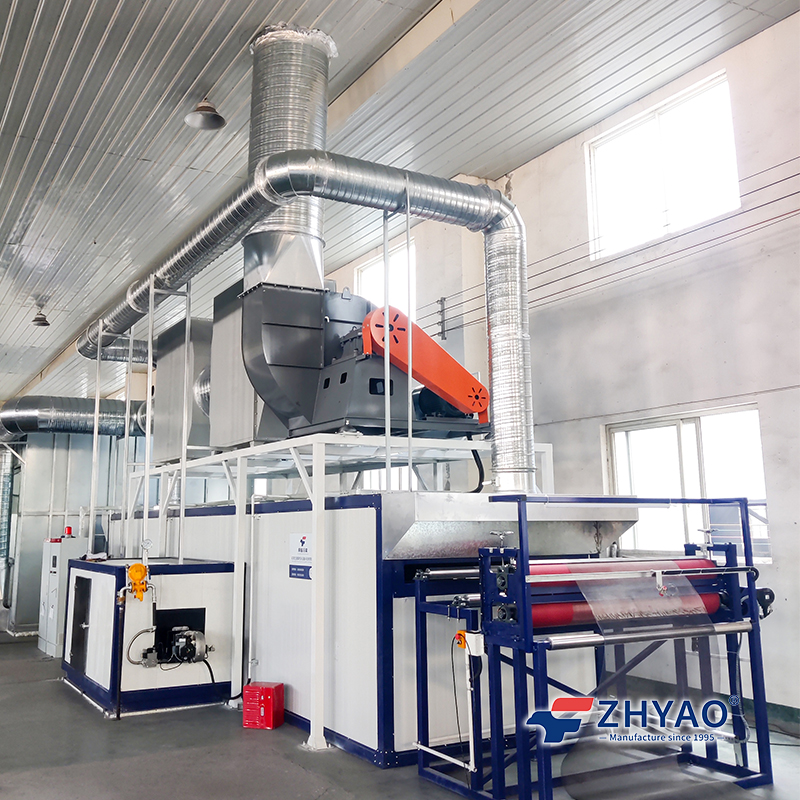

The stainless steel mesh powder coating line is an integrated industrial system designed for flat mesh sheet surface treatment.
It combines pretreatment, automatic powder application, powder recovery, and thermal curing into a continuous production workflow.
The system is optimized for open-grid mesh structures, ensuring balanced powder distribution and stable coating coverage on both surfaces.
It is suitable for manufacturers requiring standardized coating processes and controlled production quality.
System Configuration / Components
The system typically includes:
Mesh pretreatment unit (cleaning and surface preparation)
Automatic reciprocating powder spraying system

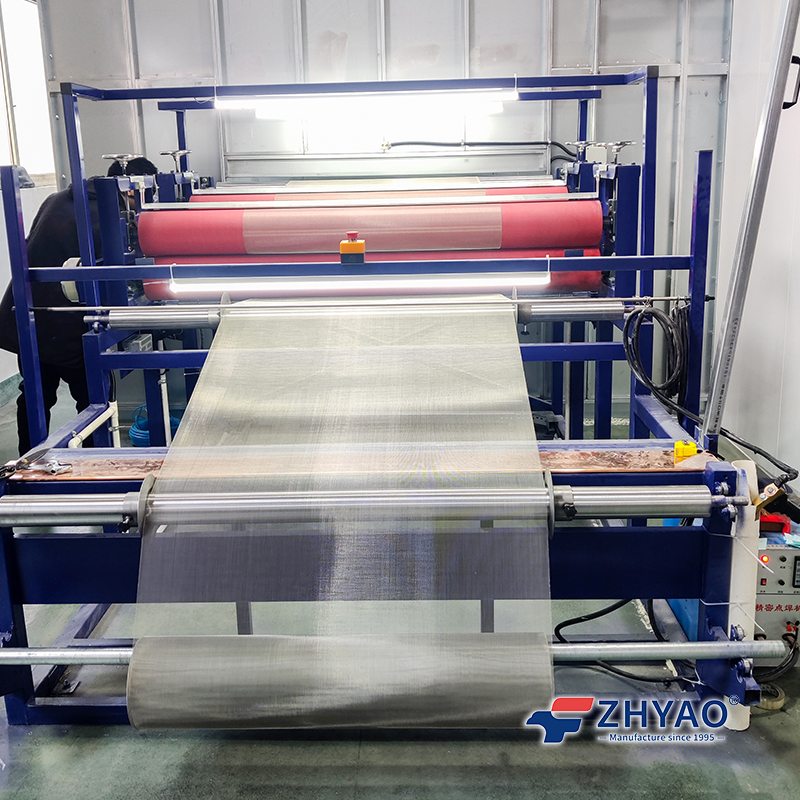

Flat positioning or horizontal conveying system
Cyclone powder recovery and filtration system
High-temperature curing oven

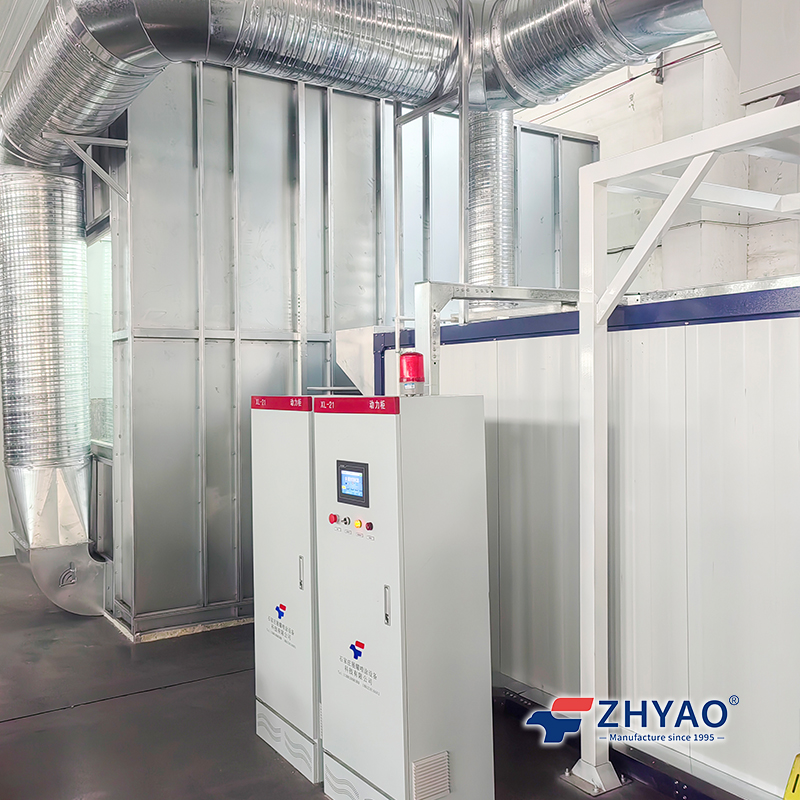

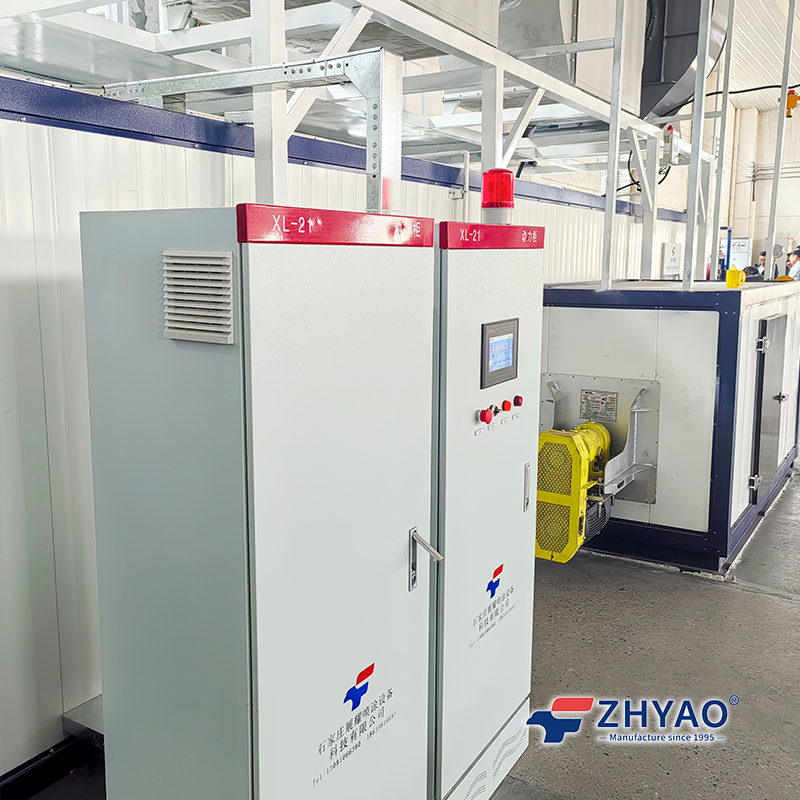

PLC control system with HMI interface
Each module operates as part of an integrated production system.
Key Advantages
Stable coating performance for mesh structures
Improved powder distribution consistency
Reduced coating defects in open-grid applications
Efficient powder recovery system
Compact layout suitable for workshop integration
Reduced manual spraying dependency
Stable batch production quality

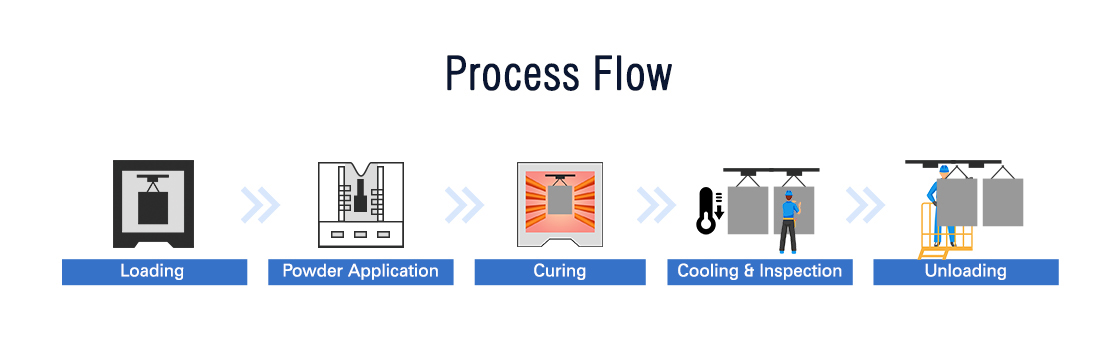

Process Flow
Mesh cleaning → Surface pretreatment → Flat positioning → Automatic powder spraying → Powder recovery circulation → Thermal curing → Cooling → Final inspection
Technical Parameters (Reference Range)
Applicable mesh size: 11–20 mesh
Wire diameter range: 0.4–1.2 mm
System layout: horizontal flat structure
Control system: PLC + touch screen HMI
Operation mode: manual loading with automatic coating cycle
Application Industries
Stainless steel security mesh production
Diamond mesh manufacturing
Window and door screen mesh processing
Building protection mesh systems
Metal mesh coating and surface treatment
Customized Engineering Solution
We design each system based on:
Workpiece size and structure
Production capacity requirements
Factory layout conditions
Coating performance requirements
Each solution is tailored to actual production needs.
Why Choose ZHYAO
ZHYAO is a full-chain manufacturer of industrial coating systems, providing turnkey engineering solutions.
We design and manufacture core systems including pretreatment units, powder coating systems, curing ovens, conveying systems, and powder recovery equipment.
We provide integrated system delivery for complete coating production lines.
Contact us to get a customized turnkey powder coating solution for your stainless steel mesh production line.
