Products Description
A Flexible Powder Coating Solution for Small-Batch and Mixed-Product Production
A manual powder coating line is designed for manufacturers that need a flexible coating process for different workpiece sizes, shapes, materials, and colors. It is particularly suitable for small and medium production batches, mixed orders, and applications where product specifications change frequently.
The powder application is carried out manually with an electrostatic spray gun, while pretreatment, drying, curing, powder recovery, conveying, and other supporting equipment can be configured according to the production process.
Product Overview
Manual powder coating gives operators direct control over powder application, making it easier to adjust spraying angles and coverage for irregular, complex, or frequently changing workpieces.
A typical line can include a pretreatment system, drying oven, manual powder spray booth, powder recovery system, curing oven, cooling area, and material handling equipment. The actual configuration depends on the workpiece characteristics, production volume, workshop conditions, and required level of automation.
Key Advantages
Flexible production — Suitable for different workpiece sizes, shapes, and product models.
Suitable for small and medium batches — Practical for production that does not require continuous high-speed automatic spraying.
Easy product and color changes — Manual operation allows operators to adapt to changing production orders.
Configurable system — Pretreatment, curing, conveying, and recovery equipment can be selected according to the application.
Future upgrade potential — The layout can be planned to accommodate additional automation when production requirements change.
Is a Manual Powder Coating Line Right for Your Production?
This type of system can be considered when you have:
Small or medium production volumes
Multiple product models
Different workpiece dimensions
Irregular or complex-shaped parts
Frequent color changes
Short production runs
Flexible or customized orders
For high-volume production with stable workpieces and repetitive coating positions, an automatic powder coating system may be more suitable.
Typical System Configuration
A manual powder coating line can be configured with the following equipment:
Pretreatment System
Removes oil, dirt, rust, and other surface contaminants and prepares the workpiece for coating.
Drying Oven
Removes moisture from workpieces after wet pretreatment before powder application.

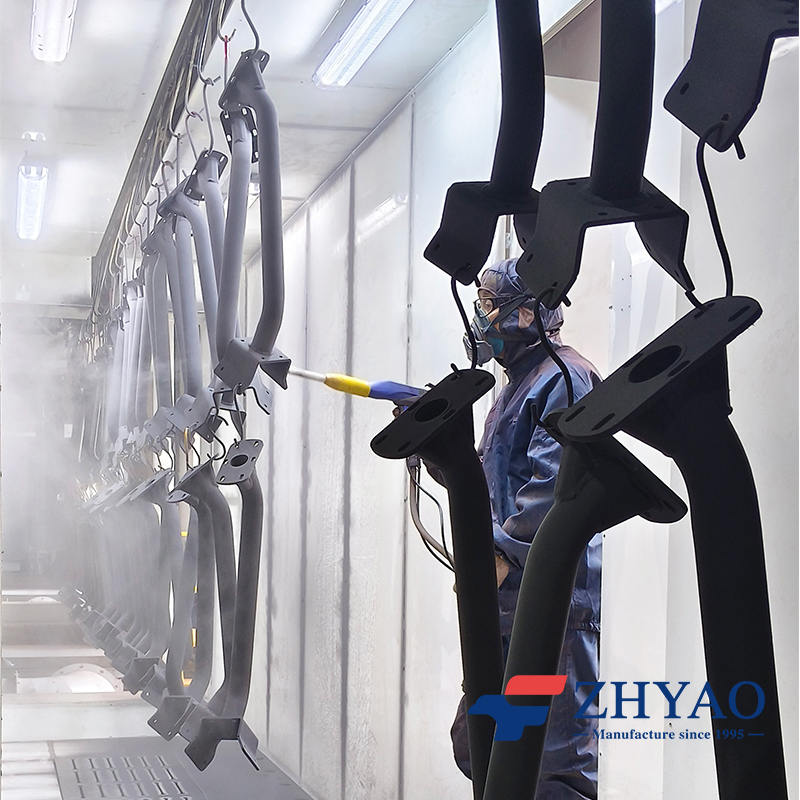

Manual Powder Spray Booth
Provides a controlled area for electrostatic powder spraying and overspray collection.
Powder Recovery System
Collects overspray powder through the selected filtration or recovery configuration.
Heats the coated workpieces according to the curing requirements of the selected powder.

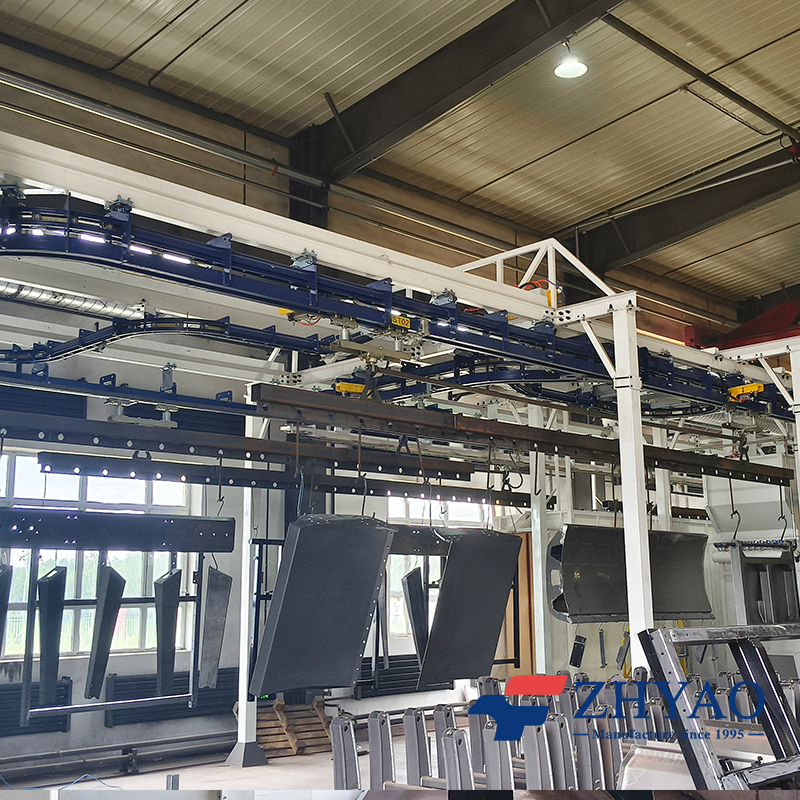

Conveyor or Material Handling System
Depending on production volume and workpiece weight, the line can use manual handling, trolleys, overhead conveyors, or other conveying solutions.
Powder Coating Process
Loading → Pretreatment → Drying → Manual Powder Spraying → Curing → Cooling → Inspection → Unloading
The workpieces are prepared and dried before entering the manual spraying area. The operator applies powder according to the workpiece geometry and coating requirements. After spraying, the coated parts are transferred to the curing oven and heated according to the powder manufacturer's specified curing conditions. Once cured and cooled, the finished parts can be inspected before unloading.

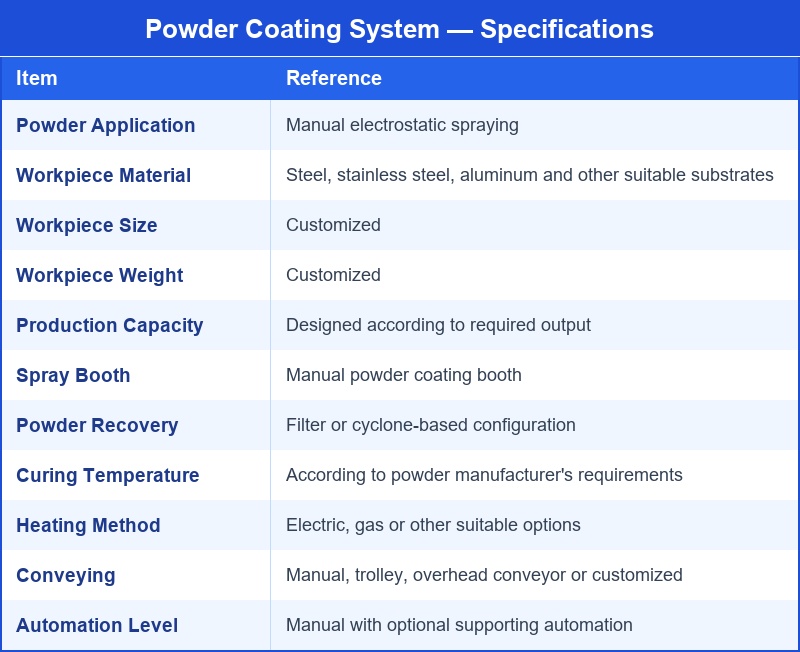

Reference Technical Parameters
The final specifications are determined according to the workpiece, production requirements, powder specification, and workshop layout.
Typical Applications
Manual powder coating systems can be used for a wide range of metal products, including:
Metal Cabinets | Steel Furniture | Shelves & Racks | Hardware | Machinery Parts | Electrical Enclosures | Agricultural Machinery Components | Lighting Components
The appropriate pretreatment and coating process should be selected according to the material and application requirements of the workpiece.

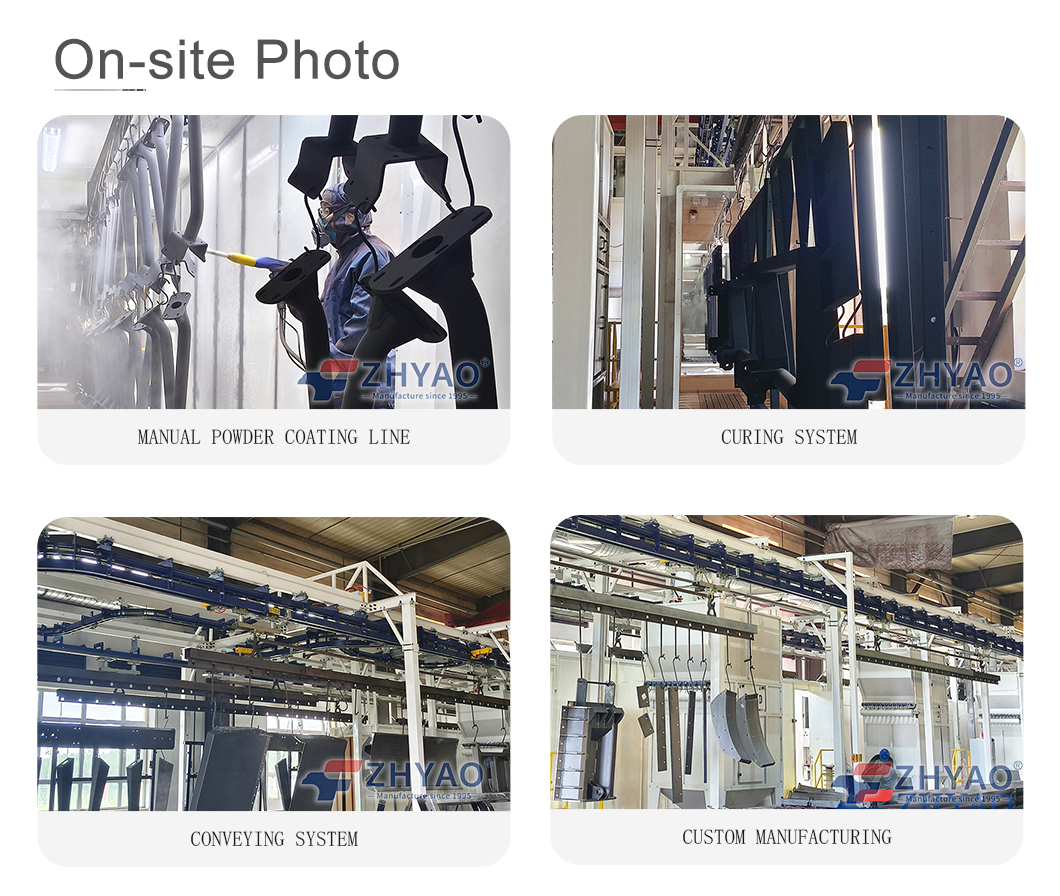

Project Example
Application: Steel cabinets and fabricated metal components
Production Type: Small-batch and mixed-product production
Configuration: Pretreatment + Drying + Manual Powder Spraying + Powder Recovery + Curing
Key Considerations: Workpiece dimensions, production output, color-change frequency, hanging method, and available workshop space.
The equipment layout and specifications can be adjusted according to the actual production conditions.
Customized for Your Production
There is no single standard configuration for every manual powder coating line. Before designing the system, we normally need to understand:
Workshop dimensions
Workpiece material
Workpiece dimensions
Workpiece weight
Daily or monthly production
Working hours
Number of powder colors
Color-change frequency
Existing coating or pretreatment equipment
Required automation level
These details help determine the appropriate pretreatment, spray booth, curing oven, conveying, recovery, and control configuration.
Why Choose ZHYAO?
30+ years of coating equipment experience
Customized powder coating line design
Complete equipment integration
Manufacturing, installation and commissioning support
Flexible configurations for different production requirements
Options for future automation upgrades
The focus is not simply on supplying a manual spray booth or powder spray gun, but on configuring the complete coating process around your workpieces and production conditions.
Frequently Asked Questions
Is a manual powder coating line suitable for small-batch production?
Yes. Manual spraying is particularly suitable when production involves multiple product models, different workpiece sizes, or relatively small production batches.
Can different powder colors be used on the same line?
Yes. The booth, powder delivery, and recovery system should be configured according to the required color-change frequency. Proper cleaning is necessary when changing colors.
Can a manual powder coating line be upgraded later?
Depending on the original layout and equipment configuration, automatic spray guns, reciprocators, or robotic spraying systems can be considered for future upgrades.
What information is needed for a preliminary solution?
Workpiece dimensions, weight, material, production output, workshop dimensions, working hours, and color-change requirements provide the basic information needed for preliminary system design.
Discuss Your Manual Powder Coating Project
Tell us about your workpieces, production requirements, and workshop conditions. If you would like to receive a customized powder coating line solution and quotation, submit your project information and our team can evaluate the appropriate system configuration for your application.
