ZHYAO E-Coating Line – Reliable Electrophoretic Coating Solution for Metal Parts
Product Overview
The ZHYAO E-Coating Line is an industrial electrophoretic coating system designed to provide uniform, corrosion-resistant coatings for conductive metal parts. By applying an electric field in a water-based coating bath, the system enables paint particles to deposit evenly onto the workpiece surface, including edges, recesses, and internal cavities.
E-coating is widely used as a primer or base coating process in industries where high corrosion protection, consistent film thickness, and strong adhesion are required. The ZHYAO E-Coating Line integrates pretreatment, electrodeposition, rinsing, curing, and material recovery into a continuous and controllable production system.
Working Principle
Electrophoretic coating is based on the movement of charged paint particles in an electric field.

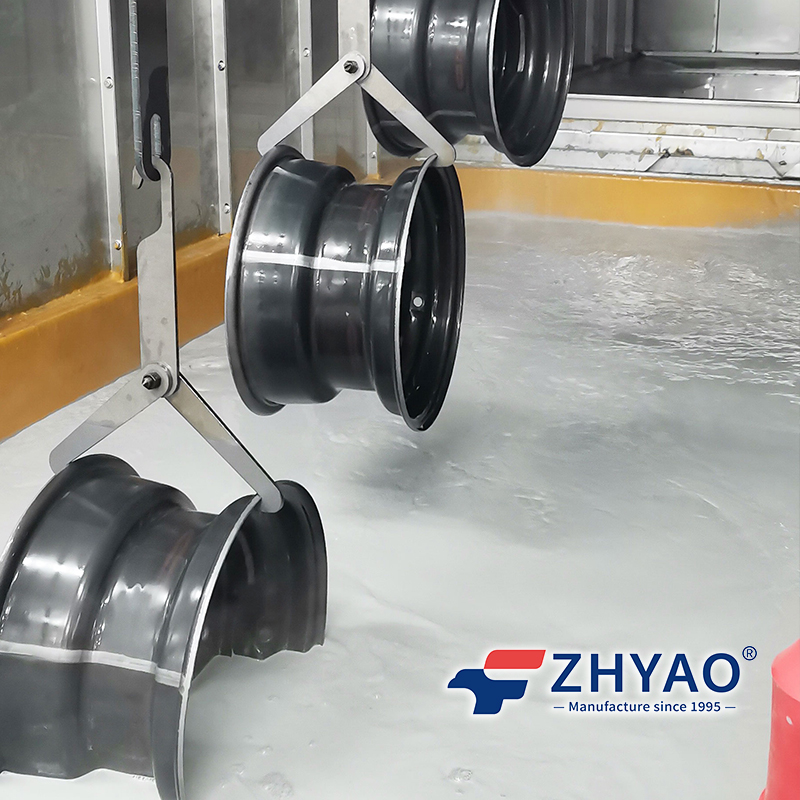

The workpiece is immersed in a coating bath containing water-based paint.
Under a DC electric field, paint particles migrate and deposit onto the conductive surface.
Once the coating reaches the required thickness, deposition naturally slows, ensuring uniform film build-up.
This process results in consistent coating thickness, even on complex geometries.
Key Features
Uniform Coating Thickness
E-coating provides excellent coverage on sharp edges, corners, and hidden areas that are difficult to coat with conventional spraying methods.
Strong Adhesion & Corrosion Protection
The deposited coating forms a dense and well-bonded film, offering reliable corrosion resistance and serving as an ideal base layer for subsequent topcoats.
Water-Based & Environmentally Controlled Process
The coating bath is water-based, with high material utilization and controlled emissions, suitable for modern industrial environmental requirements.
Automated & Stable Operation
The E-Coating Line operates with controlled voltage, current, temperature, and bath chemistry to ensure stable and repeatable coating quality.
Integrated Process Design

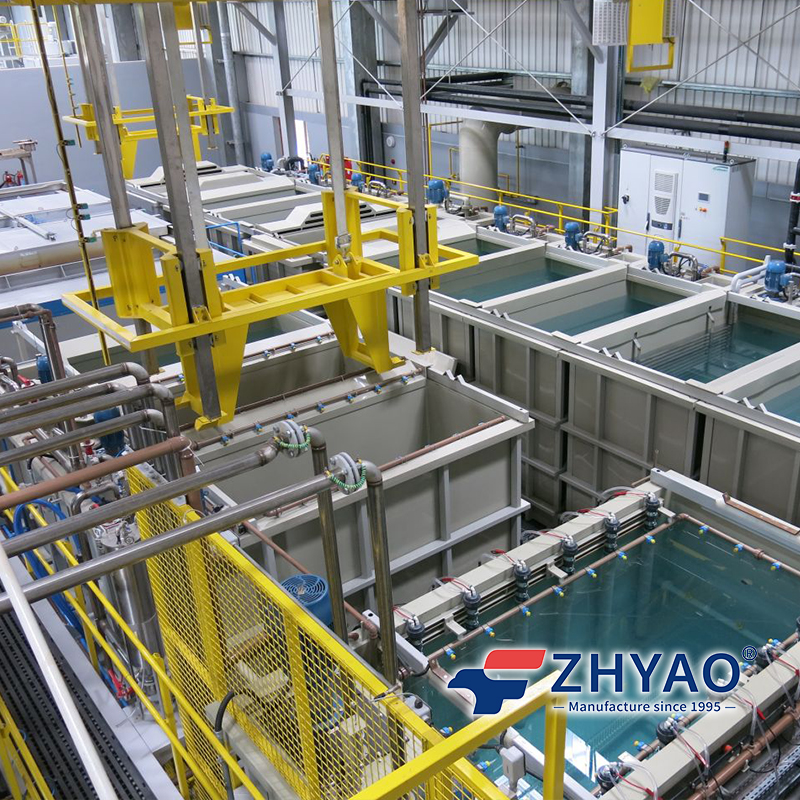

ZHYAO E-Coating Lines typically integrate pretreatment, electrodeposition tanks, ultrafiltration rinsing, curing ovens, and conveyors into a continuous workflow.
Typical Applications
The ZHYAO E-Coating Line is commonly used for:
Automotive parts and structural components
Agricultural and construction machinery parts
Electrical cabinets and metal enclosures
Hardware, fasteners, and stamped metal components
Metal frames and welded assemblies
E-coating is especially suitable for parts requiring internal corrosion protection.
Main System Components
A standard ZHYAO E-Coating Line may include:
Pretreatment system (degreasing, rinsing, surface activation)
Electrophoretic coating tank (anodic or cathodic, depending on application)
Power supply and electrical control system
Ultrafiltration (UF) rinsing system
DI water rinsing stages

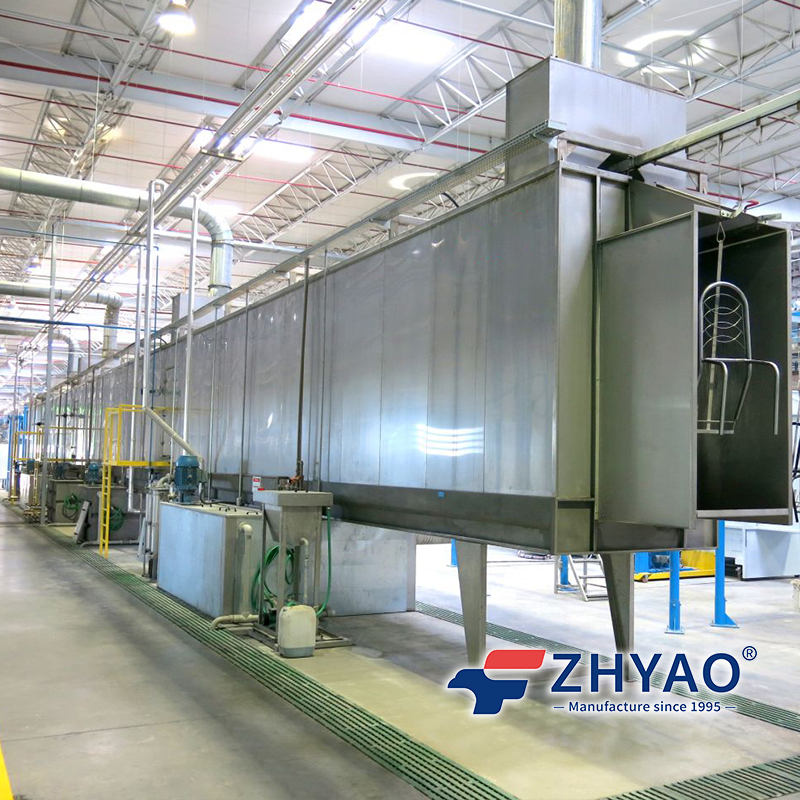

Curing oven
Conveyor and material handling system
PLC centralized control and monitoring system
System configuration can be adjusted according to product size, output, and coating requirements.
Custom Solution & Price Consultation
The ZHYAO E-Coating Line is a customized coating system. Line configuration and pricing depend on factors such as workpiece dimensions, coating type, production capacity, and plant layout.
ZHYAO provides preliminary solution design, process configuration recommendations, and price references based on your project requirements.
Please submit your product information or contact the ZHYAO team to receive an E-Coating Line solution tailored to your application.
