Electrophoretic Coating Line

Advanced E-Coating System for Metal Parts | ZHYAO

Product Overview

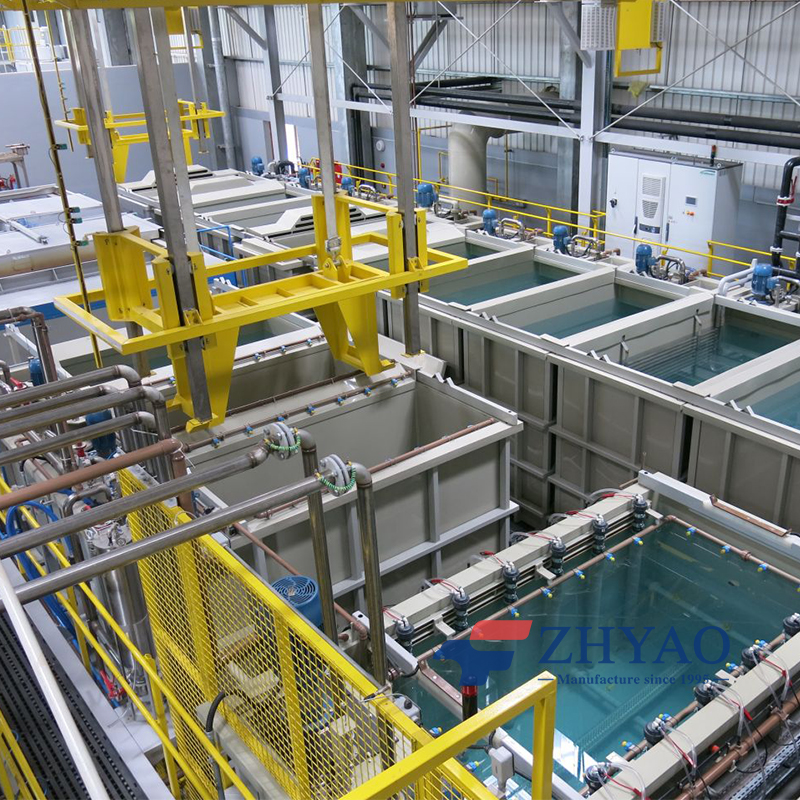

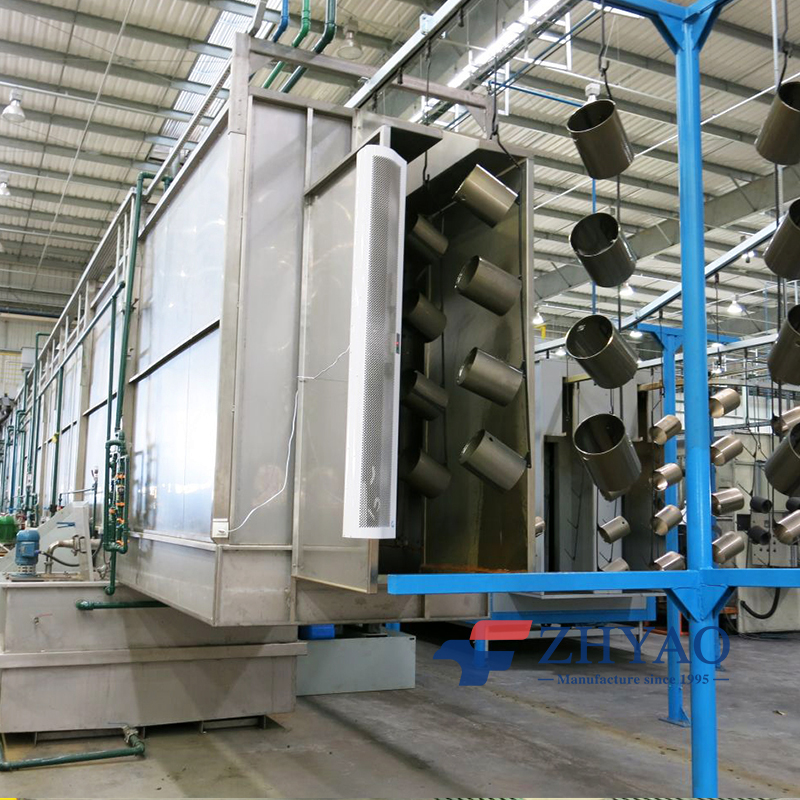

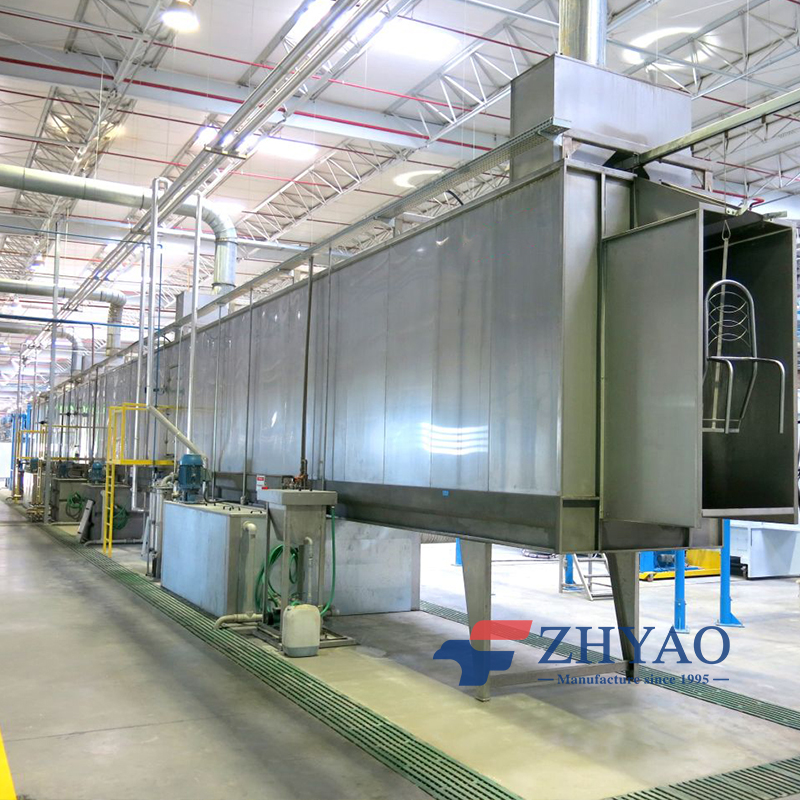

The ZHYAO Electrophoretic Coating Line (E-Coating Line) is an advanced surface finishing solution designed for metal components requiring high corrosion resistance, uniform coating thickness, and an environmentally friendly process.

This system applies an electric field to deposit paint particles evenly onto the metal surface, achieving smooth, durable, and aesthetic coatings—even on complex shapes and hidden areas.

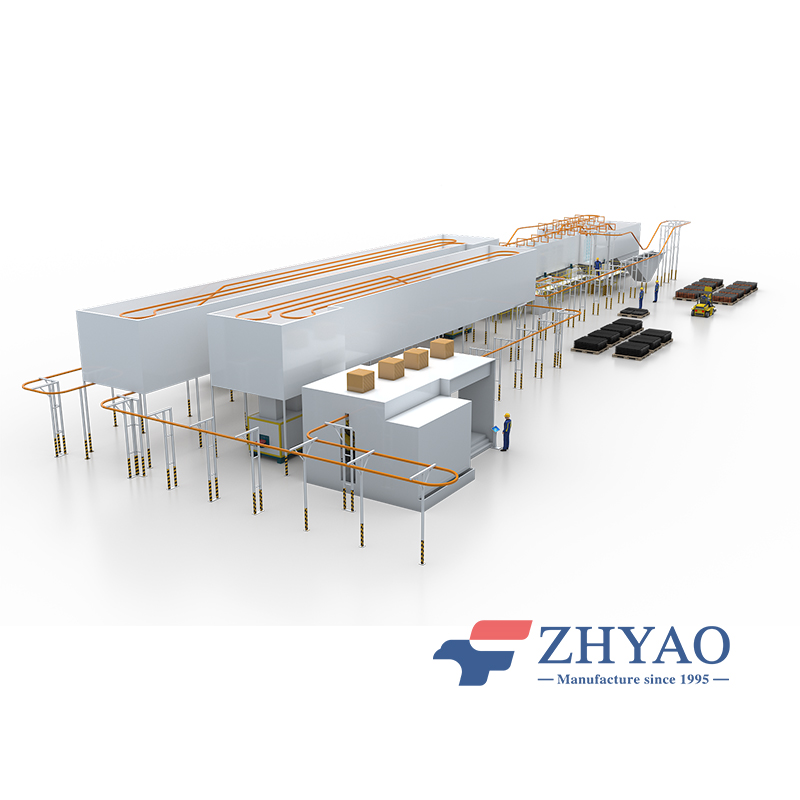

ZHYAO’s E-Coating Line integrates pretreatment, electrophoretic coating, ultrafiltration, baking, cooling, and intelligent control, forming a continuous automated workflow ideal for large-scale industrial production.

Core Features and Advantages

1. Excellent Coating Quality

Ensures high coverage and uniform film thickness, even in corners and recesses.

Outstanding adhesion and corrosion resistance, extending product lifespan.

Smooth, glossy surface suitable for topcoating or standalone protection.

2. Eco-Friendly & Energy Efficient

Water-based electrophoretic paint reduces VOC emissions.

Closed-loop filtration and recovery system minimize paint waste and wastewater.

Optimized curing oven design ensures lower energy consumption.

3. Intelligent Automation

PLC + HMI touch screen system for centralized monitoring and control.PLC+HMI

Automated conveying, coating voltage regulation, and temperature adjustment.

Optional integration with smart data tracking and remote diagnostics.

4. Flexible Customization

Configurable for both cathodic and anodic electrophoretic coating processes.

Adaptable to workpiece size, weight, and material—steel, aluminum, zinc, and more.

Modular design for easy expansion or upgrading with powder or liquid topcoating lines.

Applications

The ZHYAO E-Coating Line is widely used in:

Automotive industry: chassis parts, brackets, frames, wheels

Construction materials: metal doors, windows, curtain wall frames

Household appliances: radiators, washing machine drums, casings

General industry: agricultural machinery, tools, metal furniture, wire mesh

Why Choose ZHYAO?

30+ years of experience in industrial coating line design and manufacturing

Global service network covering Europe, Middle East, and Southeast Asia

Turnkey delivery: from planning, 3D design, and simulation to on-site installation and training

Reliable after-sales support and spare parts supply for long-term stability

Build Your Custom E-Coating Solution

At ZHYAO, we don’t offer one-size-fits-all systems — we custom-engineer your electrophoretic coating line according to:

Factory layout and space constraints

Workpiece dimensions and material

Production capacity and automation level

Energy type (gas, electricity, or hybrid)

Enhance your production efficiency, reduce environmental impact, and achieve flawless surface quality with ZHYAO’s proven E-Coating technology.
