Products Description
Product Overview

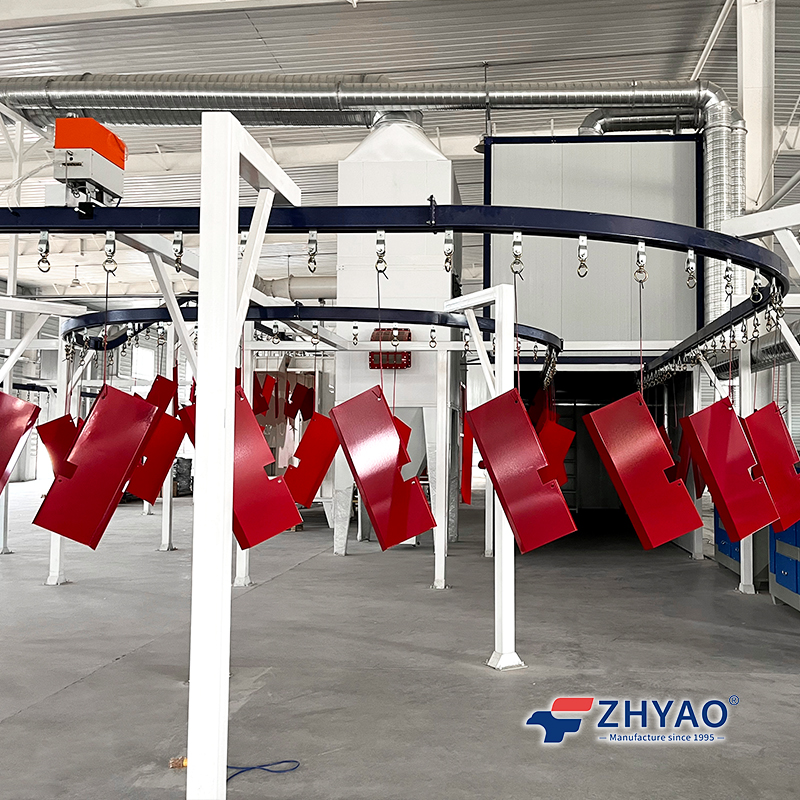

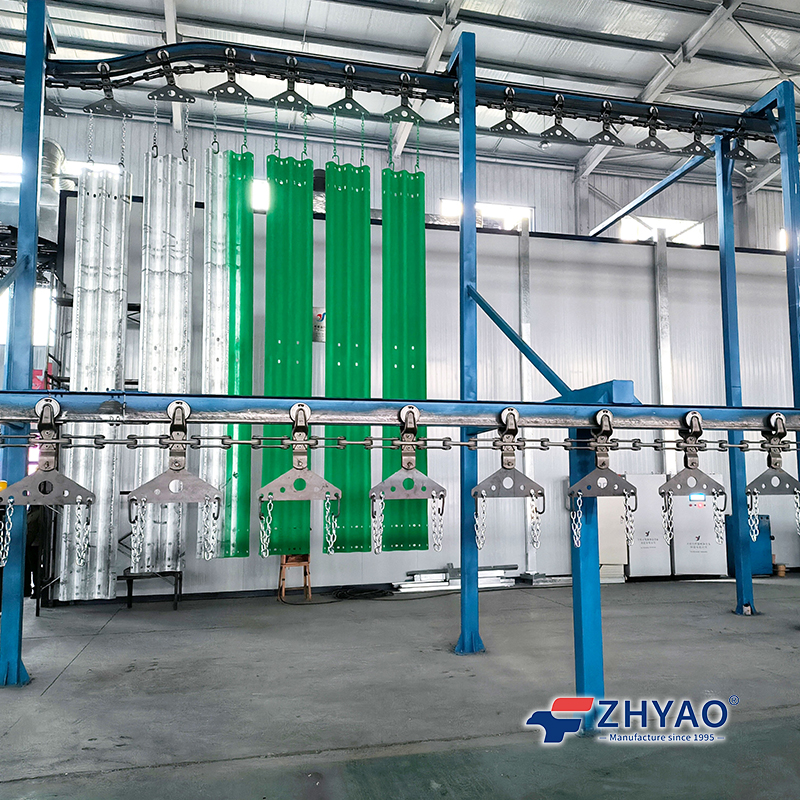

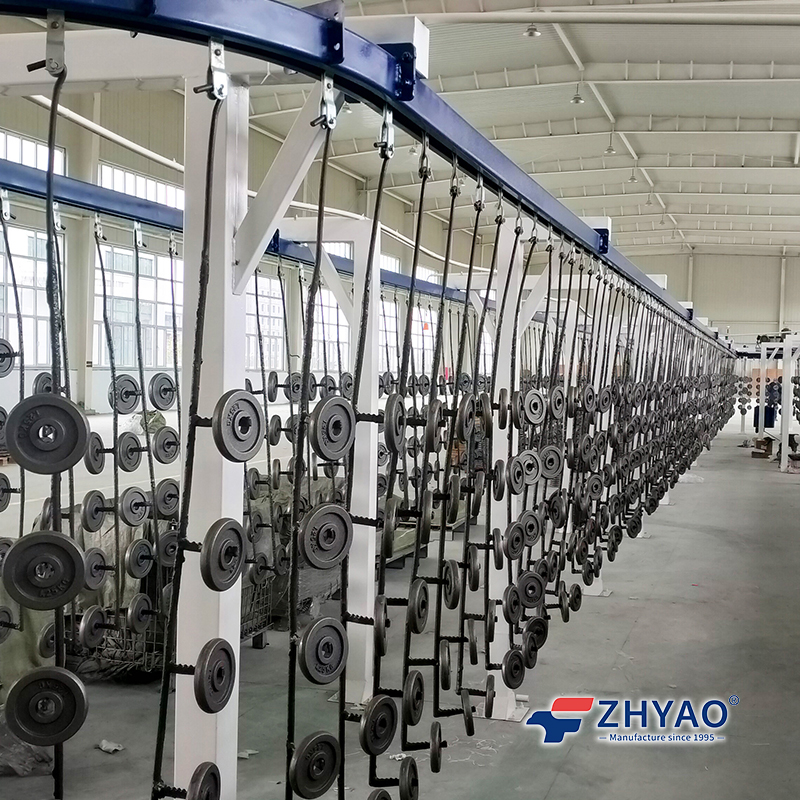

The Single Rail Overhead Conveyor System is designed for transporting workpieces along a single overhead rail track in coating and surface finishing production lines. It is widely used in compact workshop environments where flexible conveying routes and efficient space utilization are required.
This system is commonly applied in light-duty production lines, enabling stable and smooth movement of workpieces through short-distance coating or finishing processes such as spraying, drying, and assembly transfer.
Compared with heavy-duty conveying systems, it is more suitable for lightweight components and flexible production layouts.
Key Advantages
Compact structure, ideal for limited workshop space
Flexible conveying routes with curved track capability
Simple design for easy installation and maintenance
Suitable for short-distance production processes
Cost-effective solution for light-duty applications
Improves space utilization and workflow efficiency
Application Range
Light metal parts coating lines
Small hardware surface finishing
Electrical component painting lines
Short-distance assembly and transfer systems
Compact manufacturing workshops
System Composition
Single overhead rail track
Drive motor and reducer unit
Chain or trolley conveying system
Workpiece hanging fixtures
Electrical control system (optional PLC)
Safety protection devices
Technical Configuration (Customizable)
Each system can be designed according to production requirements:
Load capacity designed for light-duty workpieces
Conveyor speed adjustable based on process requirements
Layout options: straight / curved / customized design
Automation level: manual / semi-automatic / fully automatic
Compatible with coating, drying, and assembly processes
Why This System？
The single rail overhead conveyor system is an efficient solution for light-duty coating lines where space utilization and flexible layout are key requirements. It helps improve production flow efficiency while maintaining a simple and cost-effective conveying structure.
This system is best suited for compact workshops and short-distance production processes.
Contact Us for Solution Design
If you are planning a compact coating or surface finishing line, our engineering team can help design a suitable single rail conveyor system based on your production space and process requirements.
We provide customized conveyor system solutions including layout design, capacity planning, and full line integration.
【Contact us to get a customized conveyor system proposal for your production line.】
