Products Description
Product Overview

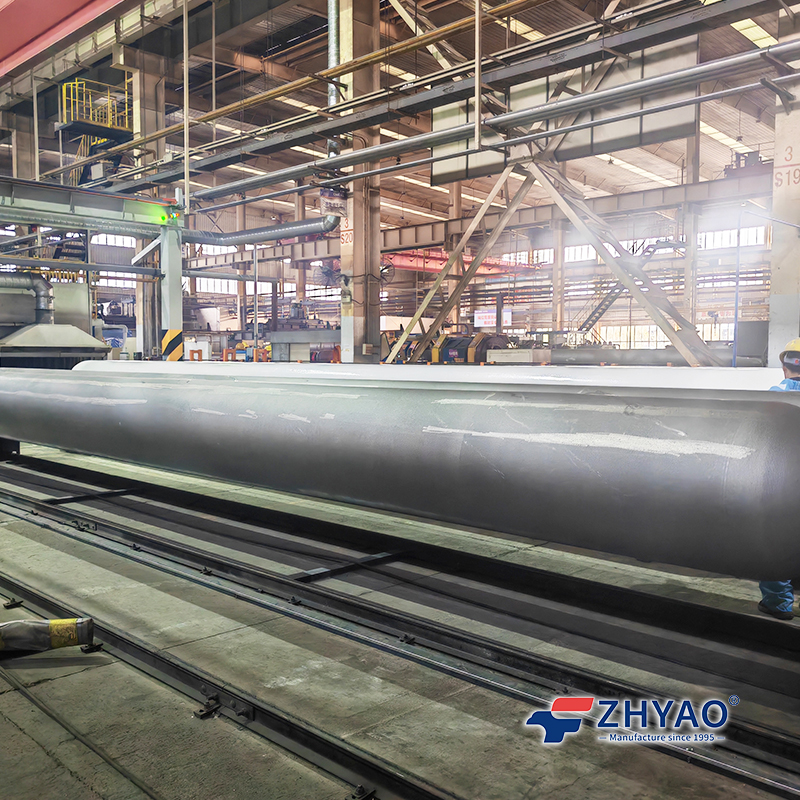

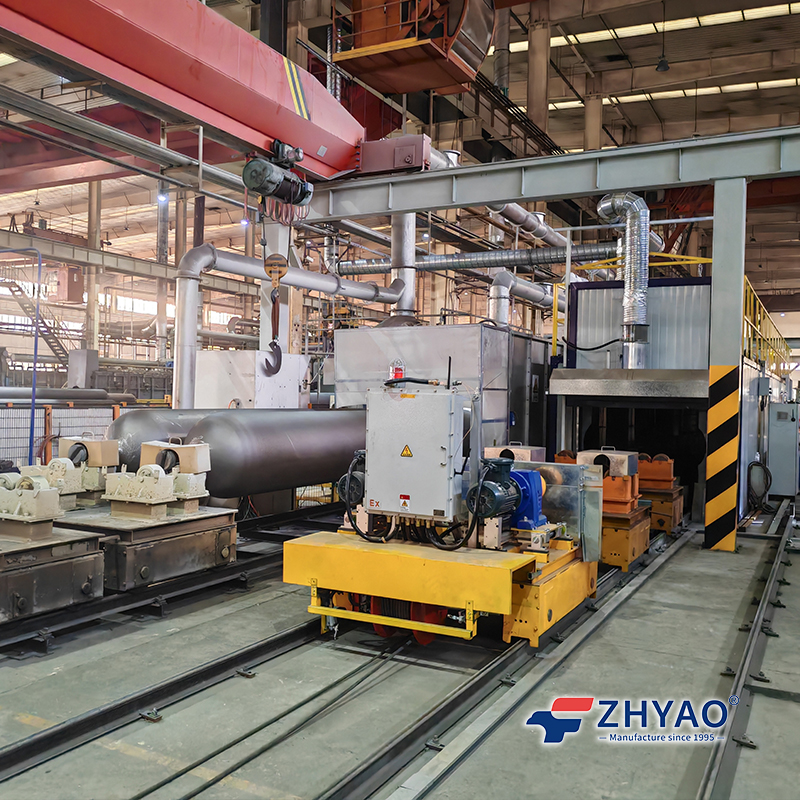

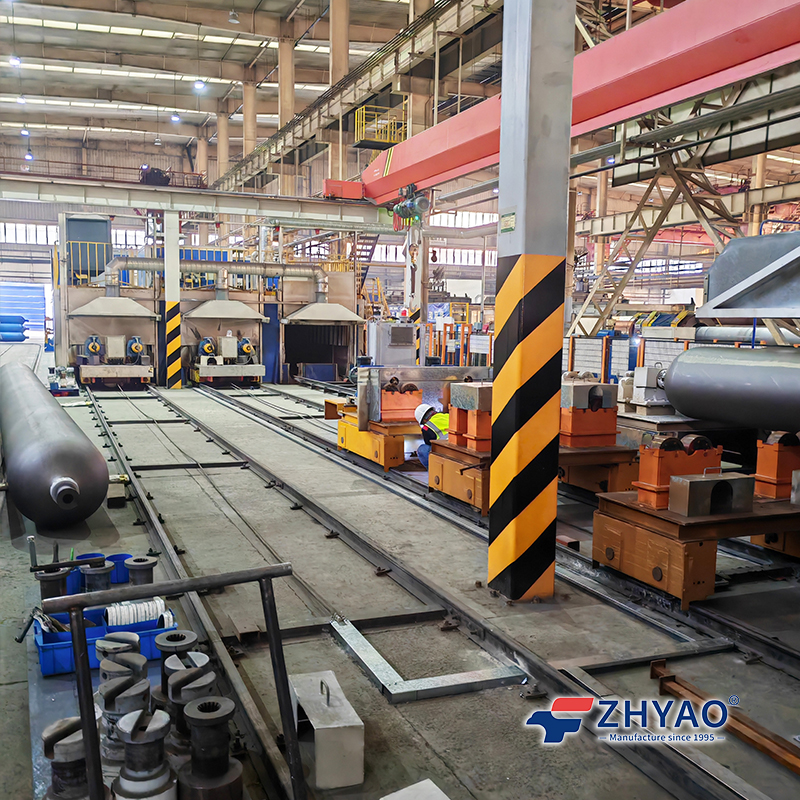

The Ground Rail Conveyor System is an industrial conveying solution designed for heavy-duty and large-size workpieces used in coating and surface finishing production lines. It ensures stable, synchronized and continuous transportation between different process stages, including pretreatment, spraying, drying, and cooling.
Compared with overhead conveying systems, the ground rail system offers higher load capacity, stronger structural stability, and easier maintenance access. It is especially suitable for large structural components and heavy industrial parts requiring reliable and consistent production flow.
Key Advantages
High load capacity for heavy and oversized industrial parts
Stable and synchronized conveying performance across all process stages
Flexible layout design (straight, loop, or multi-loop systems)
Easy integration with automatic spraying and curing systems
Durable ground rail structure with long service life
Suitable for continuous or step-by-step production modes
Reduced manual handling and improved production efficiency
Application Range
Steel structure coating production lines
Heavy machinery manufacturing plants
Automotive parts coating systems
Agricultural machinery surface treatment lines
Construction equipment painting lines
Industrial metal finishing factories
System Composition
Ground rail track system
Drive motor and reducer unit
Chain or towing conveying mechanism
Workpiece carriers / trolleys
Electrical control system (PLC optional)
Safety protection devices
Technical Configuration (Customizable)
Each ground rail conveyor system can be designed according to specific production requirements:
Load capacity customized based on workpiece weight
Conveyor speed adjustable according to process flow
Layout options: straight / loop / multi-loop / customized design
Automation level: manual / semi-automatic / fully automatic
Compatible with pretreatment, spray booth, oven, and cooling systems
Why Ground Rail Conveyor System？
In heavy-duty coating projects, stability, load capacity, and process synchronization are critical. The ground rail conveyor system provides a reliable solution for continuous production, reducing manual handling while improving workflow efficiency and system integration in industrial coating lines.
Contact Us for Custom Solution
If you are planning a new coating production line, our engineering team can provide a customized ground rail conveyor system based on your factory layout, production capacity, and process requirements.
We offer complete turnkey solutions including layout design, capacity calculation, and full line integration.
【Contact us now to get your tailored solution.】
