Products Description
Product Overview

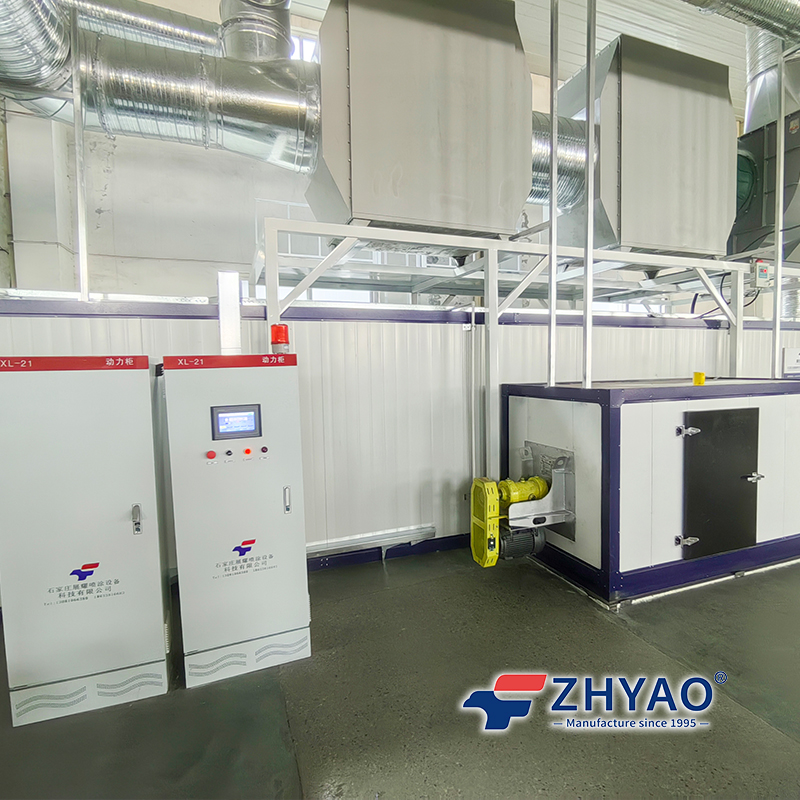

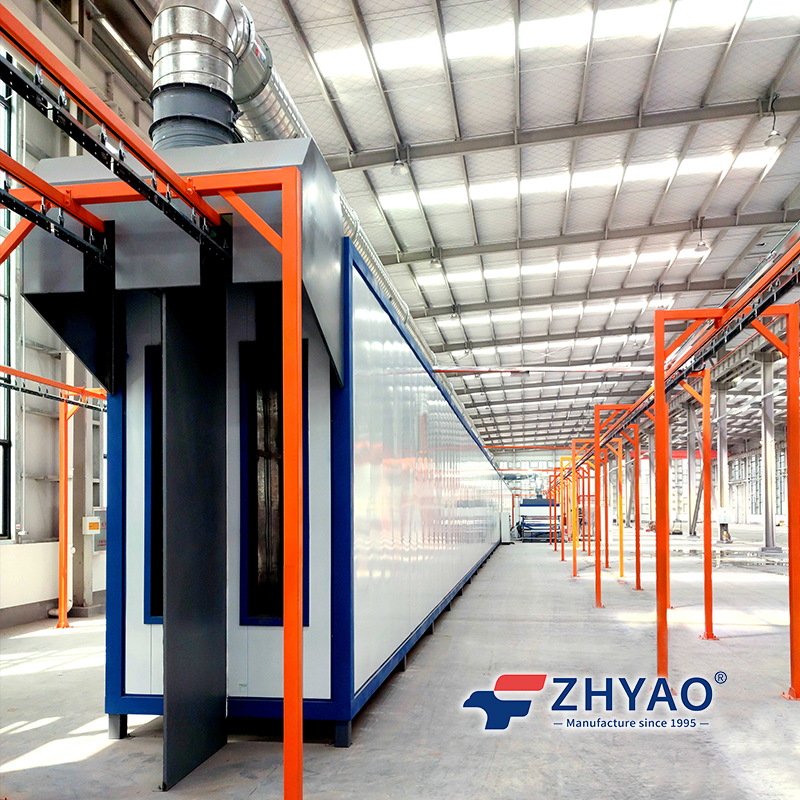

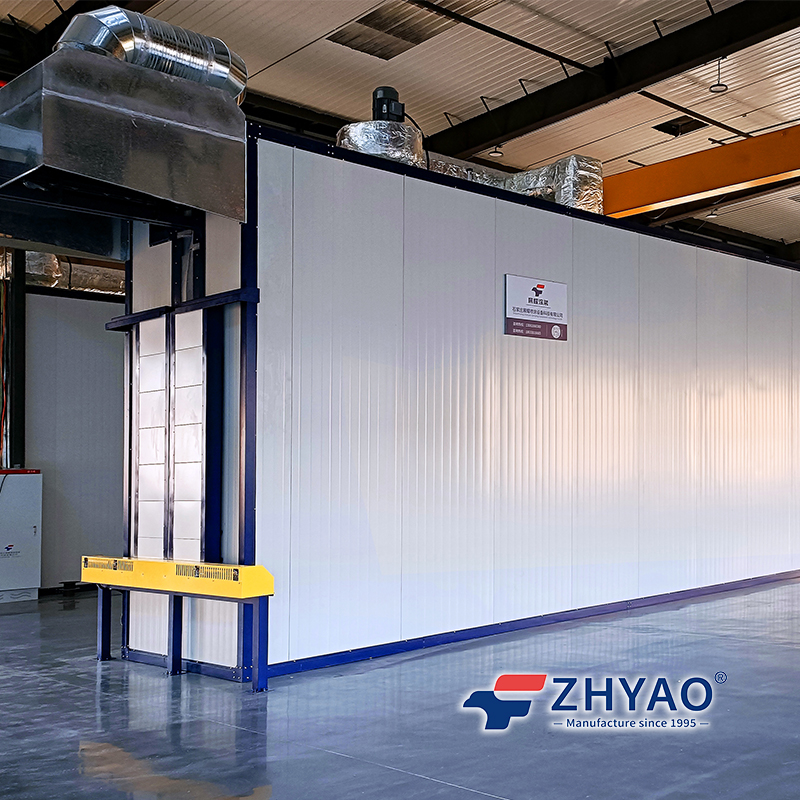

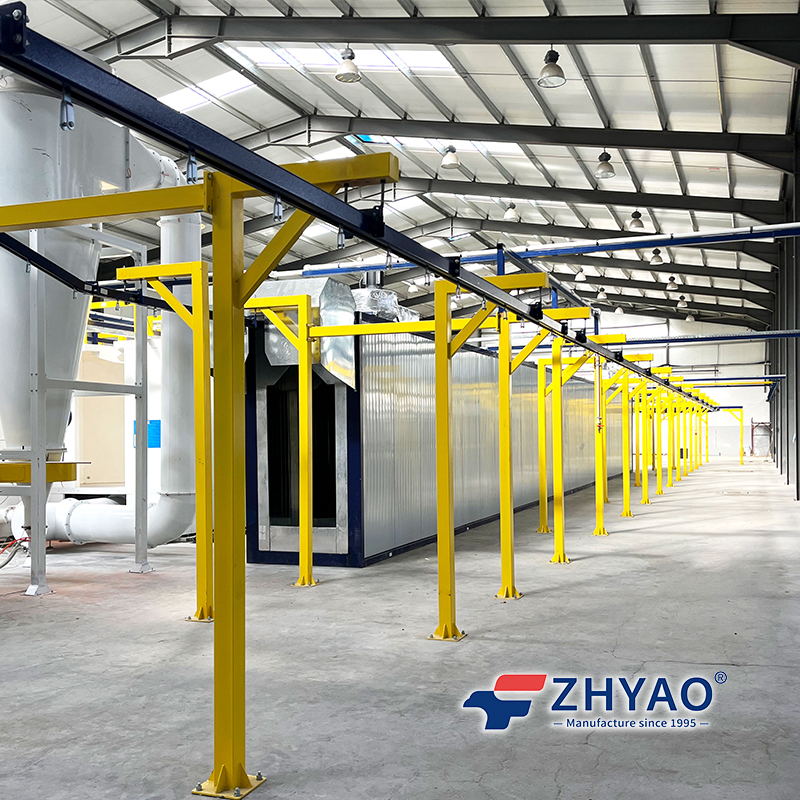

The Tunnel Type Curing Oven is a continuous industrial oven designed for high‑throughput coating and curing applications. It uses a conveyor system to transport workpieces through a long tunnel‑shaped chamber, where the powder or liquid coating is thermally cured under controlled temperature conditions. The tunnel design enables efficient heat distribution, minimal temperature variation, and consistent product quality across every piece in the production flow.
This type of oven is widely used in powder coating lines and general surface treatment processes as a reliable curing solution for large batches and continuous production.
System Composition & Working Principle
Conveyor System – A continuous conveyor belt moves products through the curing tunnel at a controlled speed, matching line speed for consistent curing.
Heating Elements / Burners – Arranged along the oven walls or ceiling to provide stable, uniform heat.
Air Curtains – Located at both ends of the tunnel to reduce heat loss and improve energy efficiency — a patented design in some systems.
Heat Circulation System – Ensures balanced airflow and uniform temperature throughout the oven chamber.
Temperature Control System – Digital temperature controllers with multiple zones ensure the temperature difference inside the oven is controlled within a tight range (commonly ±3°C).
Tunnel curing ovens can be configured with electrical, gas (natural gas/LPG), diesel, or other heating sources, based on the production line’s energy setup and customer requirements.
Key Advantages
Continuous & High‑Throughput Operation
The tunnel oven’s conveyorized design supports continuous curing with stable temperature, making it ideal for large‑scale coating lines.
Uniform Temperature & Consistent Quality
Balanced airflow and strategic heating element placement allow temperature differences within the oven to remain minimal (±3°C), ensuring consistent curing across all workpieces.
Energy Efficiency
Air curtains and optimized heat circulation help reduce heat loss, saving fuel and lowering operating costs compared with traditional batch ovens.
Flexible Heating Options
Supports various heating sources — electric, gas, diesel — to meet different plant energy conditions and cost requirements.
Suitable for Long Workpieces
Compared to other oven types like bridge ovens, tunnel ovens are more suitable for long, narrow products such as pipes, profiles, and poles.
Typical Applications
The Tunnel Type Curing Oven is typically integrated into industrial coating and finishing lines, including but not limited to:
Powder coating production lines
Continuous conveyor coating systems
Metal fabrication and structural component finishing
Automotive parts, profiles, and pipes
Guardrail and fencing product curing
Its design ensures consistent thermal curing performance for products requiring thorough and controlled heat treatment.
Customization & Integration
Depending on the production requirements, the tunnel curing oven can be customized for:
Conveyor speed and oven length
Temperature zone count and control precision
Heating source selection (electric, gas, diesel)
Integration with automated coating lines
Modular and customizable design ensures the oven perfectly matches existing production workflows and coating processes.
Why Choose ZhYao Curing Oven?
Designed for industrial continuous production
Patented air curtain system for better heat retention
Reliable temperature uniformity for consistent curing
Wide range of customizable configurations
Suitable for integration into automated coating lines
Need a Tunnel Type Curing Oven for your coating line?
