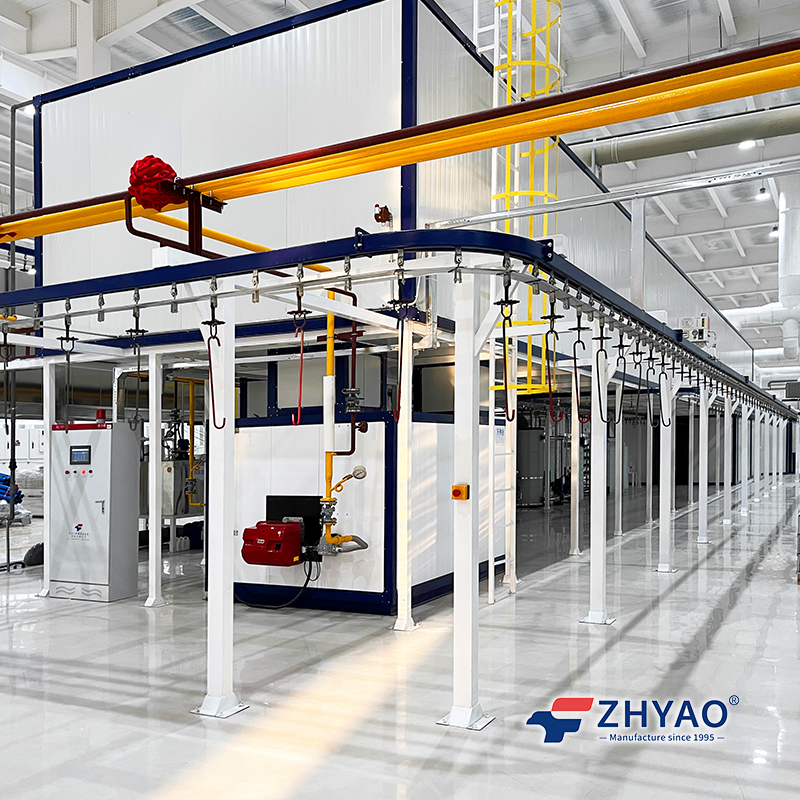

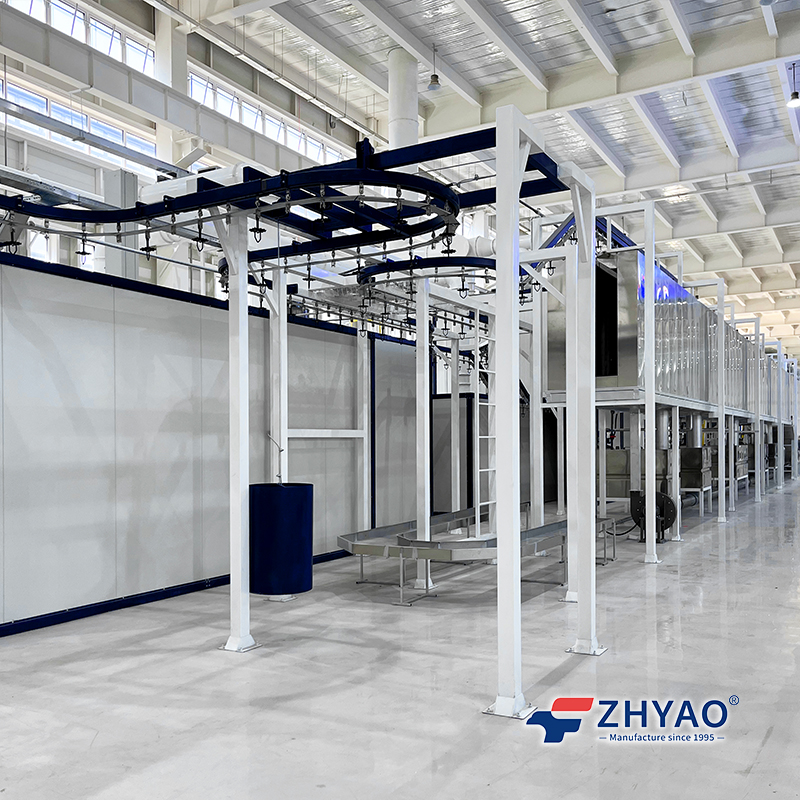

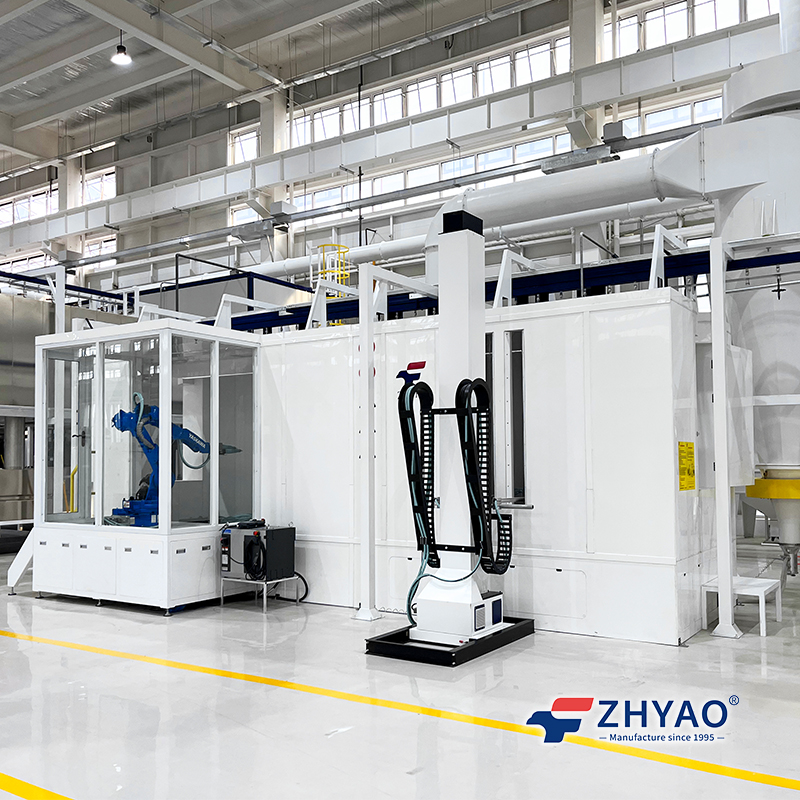

ZHYAO Automatic Powder Spraying System is designed for high-volume industrial manufacturers who require consistent, high-quality, and efficient coating across multiple metal components. The system integrates automated powder spraying robots, pretreatment units, powder recovery and filtration systems, curing ovens, and PLC-based intelligent control, providing a turnkey industrial coating solution.

This system is widely used for aluminum profiles, window and door frames, furniture components, automotive parts, and industrial metal structures. By automating the spraying process, it ensures uniform coating thickness, reduces labor costs, and improves production throughput. Each line is customized based on workpiece size, factory layout, and production requirements.

Talk to our engineering team to design a fully automated powder coating solution for your production needs.

Product Overview

The Automatic Powder Spraying System is a fully integrated coating line suitable for high-volume industrial production. It combines precise automated spraying, advanced powder recovery, and energy-efficient curing to deliver consistent and durable surface finishing.

The system minimizes human intervention while maintaining flexibility for different product sizes and shapes. Its modular design allows easy upgrades and integration into existing production lines.

Key Features & Advantages

1. Fully Automated Spraying

Robots handle all spraying operations, eliminating manual intervention and improving efficiency.

2. High Coating Quality

Uniform powder distribution ensures smooth, glossy, and durable finishes. Adjustable spray parameters accommodate different workpiece geometries.

3. Efficient Powder Recovery

High-efficiency cyclone and two-stage recovery systems capture unused powder, achieving recovery rates ≥98%.

4. Energy-Efficient Curing

Advanced curing ovens with natural gas, electric, or infrared heating ensure uniform curing across all surfaces.

5. Intelligent Control System

PLC + HMI enables real-time monitoring, production control, and optional AI-based defect detection, energy tracking, and automated color change.

6. Flexible & Modular Design

The line can be scaled or upgraded based on production needs, supporting semi-automatic or fully automatic integration.

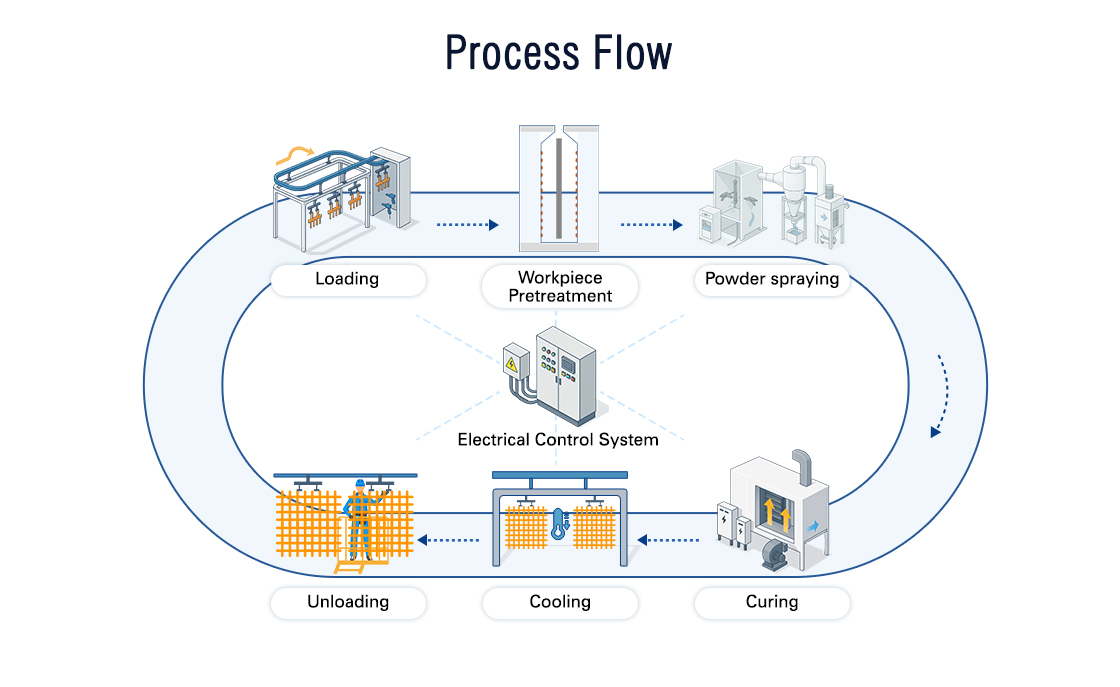

Working Process

Pretreatment → Automated Spraying → Curing → Cooling → Inspection

Each step is optimized to ensure surface cleanliness, adhesion, curing stability, and consistent coating quality.

Applications

Aluminum Profiles (Windows, Doors, Curtain Walls)

Furniture Components (Cabinets, Frames, Metal Parts)

Industrial Metal Structures (Shelving, Frames, Panels)

Automotive Components

High-volume manufacturing of metal parts requiring uniform coating

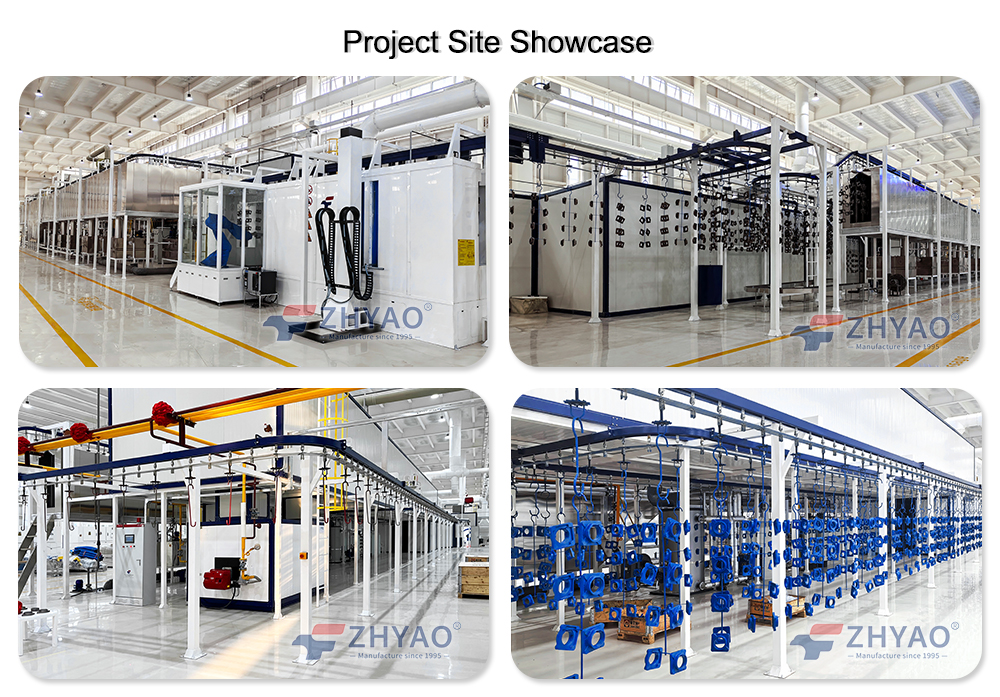

Project Experience

ZHYAO has successfully delivered hundreds of Automatic Powder Spraying Systems worldwide. Our systems have helped manufacturers reduce labor costs, improve powder utilization, and stabilize coating quality for high-volume industrial production.

Service & Support

ZHYAO provides full engineering support across the project lifecycle:

Layout design and system planning

Equipment manufacturing and integration

Installation and commissioning

Operator training

Technical support and system upgrades

FAQ

Q1: What is an automatic powder spraying system?

A fully automated coating system that uses robots for powder spraying, integrating pretreatment, curing, and powder recovery.

Q2: What industries benefit from this system?

Aluminum extrusion, furniture components, automotive parts, and industrial metal structures.

Q3: How does it improve production efficiency?

Automation reduces manual labor, ensures uniform coating, and increases throughput.

Q4: Can the system be customized?

Yes, lines are tailored to product size, shape, and factory layout.

Q5: What is the powder recovery efficiency?

The system achieves ≥98% powder recovery, reducing material waste and operating costs.

Looking for a high-precision, fully automated powder coating solution for industrial production?

Contact ZHYAO engineering team to get a tailored Automatic Powder Spraying System.
