ZHYAO Powder Coating Booths are designed to provide a controlled spraying environment for powder coating operations, ensuring consistent coating quality, improved powder utilization, and a cleaner production environment. Suitable for both manual and automatic powder coating lines, the booths can be customized according to production capacity, workpiece dimensions, and coating requirements.

The system integrates powder collection, air filtration, and recovery technologies to reduce powder loss and maintain stable operating conditions. Whether for small-batch production or continuous industrial manufacturing, powder coating booths play a critical role in achieving efficient and reliable coating performance.

Contact our engineering team to find the right powder coating booth solution for your production requirements.

Product Overview

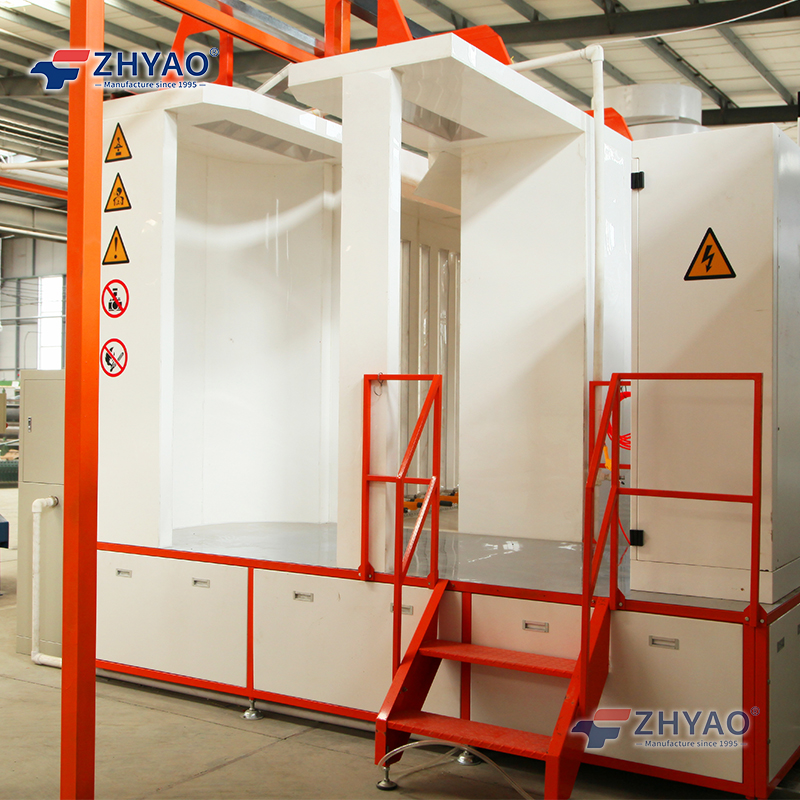

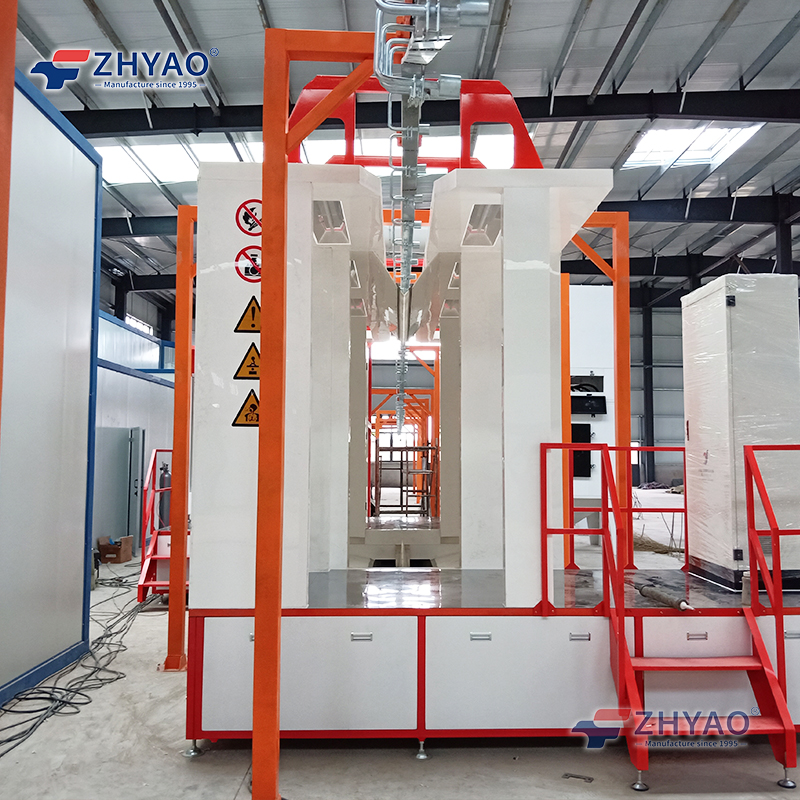

Powder coating booths are specialized spraying enclosures designed to contain overspray powder, improve operator working conditions, and enhance powder recovery efficiency.

A properly designed booth helps maintain consistent airflow, reduces contamination risks, and supports stable coating quality throughout the production process. Depending on production requirements, booths can be configured for manual operation, automatic spraying systems, or quick color change applications.

Key Features & Advantages

1. Controlled Spraying Environment

The booth creates a dedicated coating area that helps maintain stable airflow and reduce contamination from external particles.

2. Improved Powder Recovery

Integrated recovery systems collect overspray powder for reuse, helping reduce material consumption and operating costs.

3. Flexible Configuration

Available in manual, automatic, and quick color change configurations to suit different production requirements.

4. Stable Airflow Management

Optimized airflow design improves powder capture efficiency and contributes to consistent coating quality.

5. Easy Maintenance

Modular construction allows convenient cleaning, maintenance, and replacement of key components.

6. Customizable Design

Booth dimensions, recovery systems, and filtration configurations can be customized according to production needs.

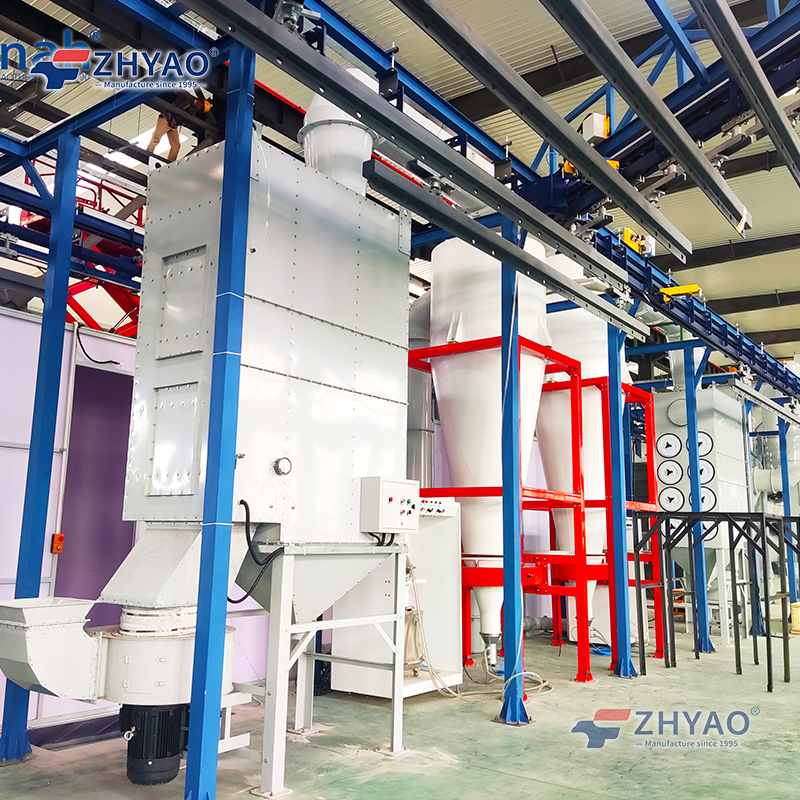

Working Principle

Powder is sprayed onto the workpiece inside the booth.

Overspray powder is captured by the booth airflow system and directed to the recovery unit.

Recovered powder is filtered and returned to the powder supply system when applicable.

Clean air passes through the filtration system before being discharged or recirculated according to system design.

This process helps maintain a clean spraying environment while maximizing powder utilization.

Applications

Powder coating booths are widely used in:

Metal furniture manufacturing

Aluminum profile coating

Electrical cabinets and enclosures

Automotive components

Industrial metal products

Agricultural and construction equipment

General metal finishing industries

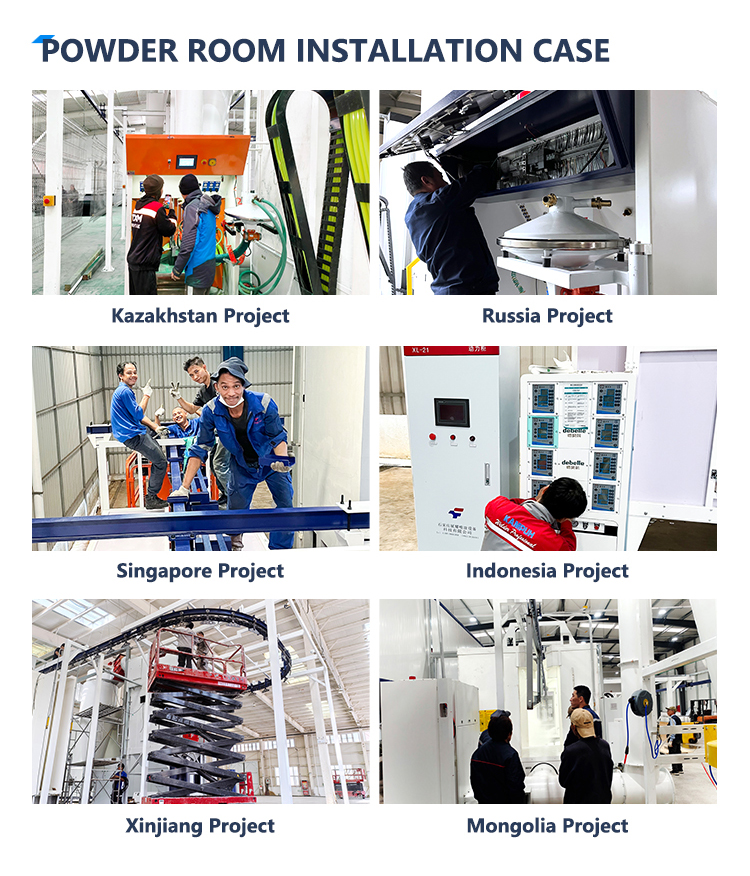

Project Experience

ZHYAO has supplied powder coating booths as part of complete coating systems and standalone upgrades for manufacturers across various industries.

Our engineering team designs booth solutions based on production volume, color change requirements, powder recovery targets, and factory layout conditions to help customers improve operational efficiency and coating consistency.

Service & Support

We provide comprehensive engineering support including:

Booth selection and system design

Factory layout planning

Equipment manufacturing

Installation and commissioning

Operator training

Technical support and upgrades

FAQ

Q1: What is a powder coating booth?

A powder coating booth is an enclosed spraying area designed to contain overspray powder, improve recovery efficiency, and maintain coating quality.

Q2: What types of powder coating booths are available?

Common options include manual powder coating booths, automatic powder coating booths, and quick color change powder booths.

Q3: Why is powder recovery important?

Powder recovery helps reduce material waste, lower operating costs, and improve overall production efficiency.

Q4: Can the booth be customized?

Yes. Booth size, recovery system type, filtration method, and airflow configuration can all be customized.

Q5: Is the booth suitable for automatic powder coating lines?

Yes. Powder coating booths can be integrated into both semi-automatic and fully automatic coating systems.

Looking for a reliable powder coating booth for your coating operation?

Contact the ZHYAO engineering team to discuss your production requirements and receive a customized powder coating booth solution.
