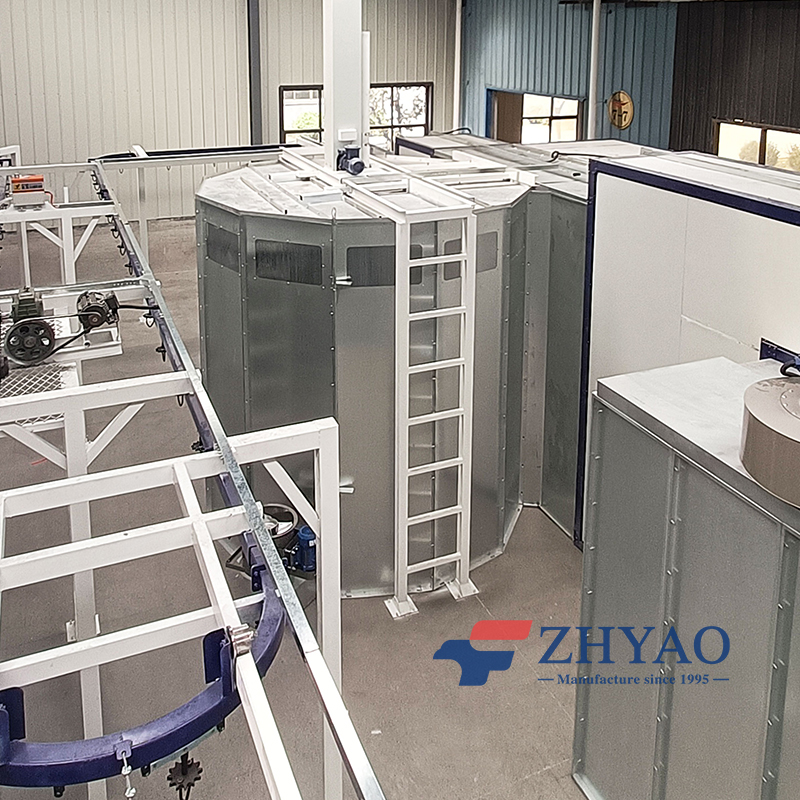

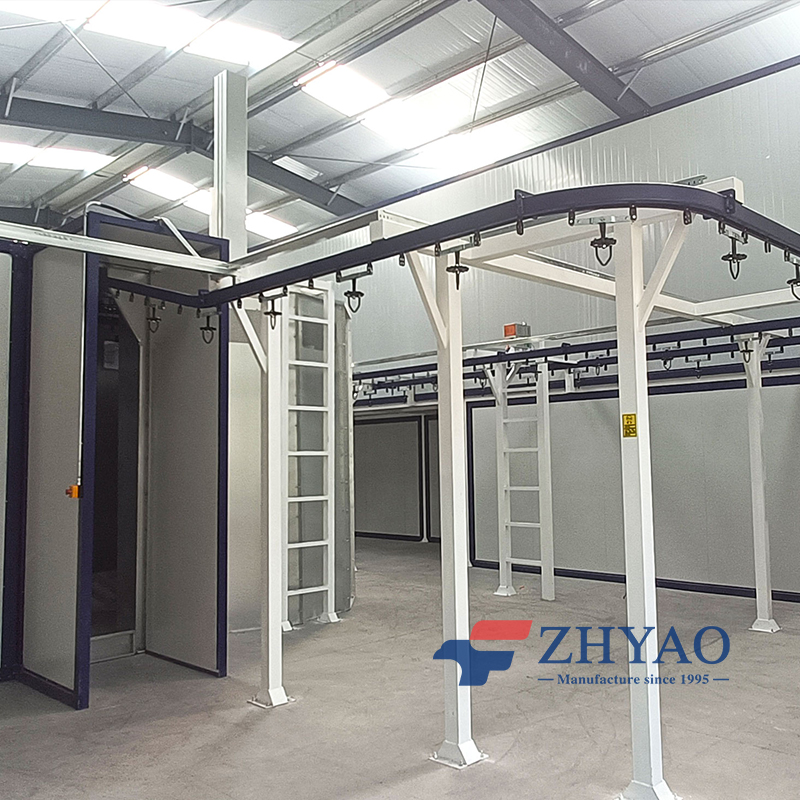

ZHYAO Fully Automatic Liquid Painting Line is designed for high-volume industrial liquid coating applications requiring stable finish quality, precise process control, and continuous production efficiency. The system integrates pretreatment, automatic spray painting, drying/curing, paint recovery (optional), conveyor system, and PLC intelligent control into a complete turnkey liquid painting solution.

This system is widely used for metal furniture, automotive components, industrial machinery parts, steel structures, and appliance housings. It ensures uniform paint film thickness, strong adhesion, and consistent surface appearance across large-scale production.

Unlike manual or semi-automatic painting processes, this fully automated system reduces labor dependency, improves coating stability, and enhances overall production throughput. Each line is customized based on product type, coating requirements, and factory layout.

Contact ZHYAO engineering team to design a customized fully automatic liquid painting solution for your production needs.

Product Overview

The Fully Automatic Liquid Painting Line is an industrial coating system engineered for continuous and stable liquid paint application. It is suitable for manufacturers requiring high surface quality and consistent coating performance in mass production environments.

The system is designed to ｒｅｐｌａｃｅ traditional manual spray painting with automated process control, ensuring improved efficiency, reduced overspray, and better coating consistency.

Key Features & Advantages

1. Fully Automated Painting Process

Robotic or automatic spray systems ensure consistent paint application without manual intervention.

2. Stable Coating Quality

Precise control of spray pressure, flow rate, and conveyor speed ensures uniform paint film thickness.

3. High Production Efficiency

Continuous conveyor operation supports large-scale, high-volume production.

4. Optimized Drying System

Advanced drying or curing ovens ensure fast and uniform drying for different coating materials.

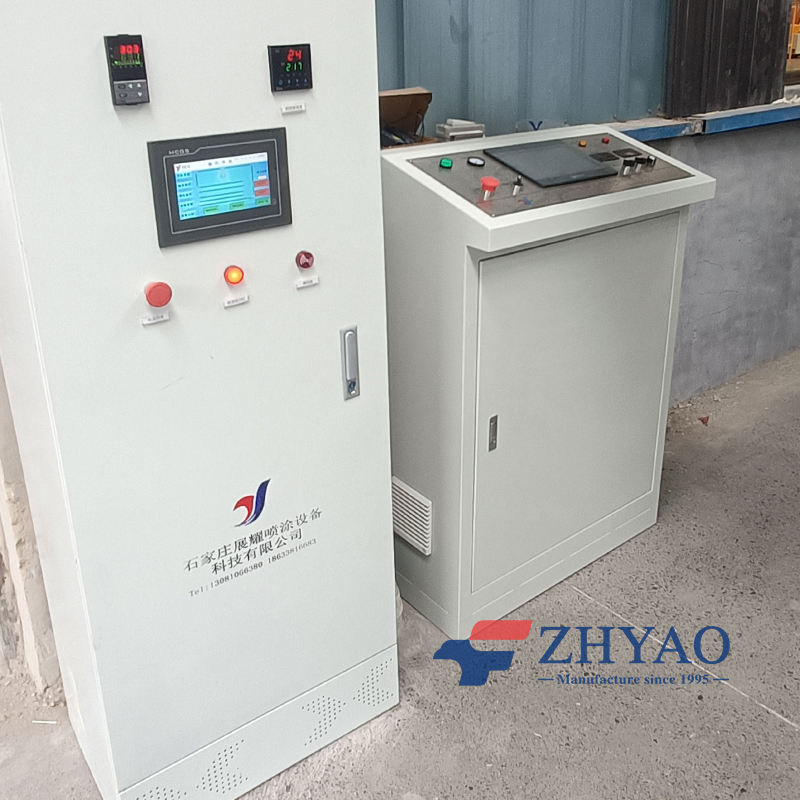

5. Intelligent Control System

PLC-based system enables real-time monitoring and process adjustment for stable production.

6. Customizable Configuration

System can be designed according to product size, paint type, and production capacity requirements.

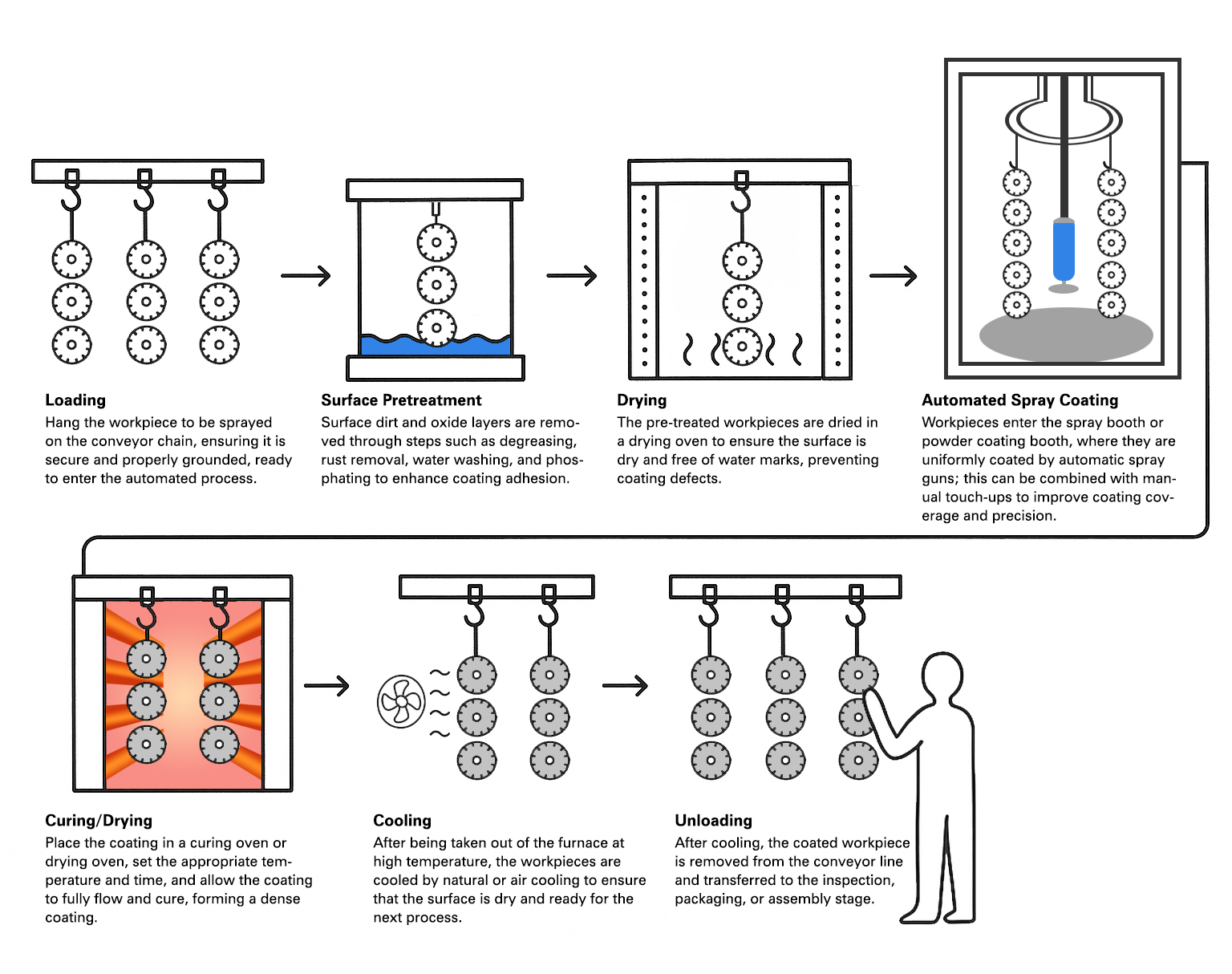

Working Process

Pretreatment → Automatic Liquid Spraying → Flash-Off (optional) → Drying/Curing → Cooling → Inspection

Each stage is optimized to ensure surface cleanliness, paint adhesion, uniform film formation, and consistent final product quality.

Applications

The Fully Automatic Liquid Painting Line is widely used in:

Metal furniture and office equipment

Automotive components and parts

Industrial machinery and equipment housings

Steel structures and frames

Household appliance casings

General industrial metal products

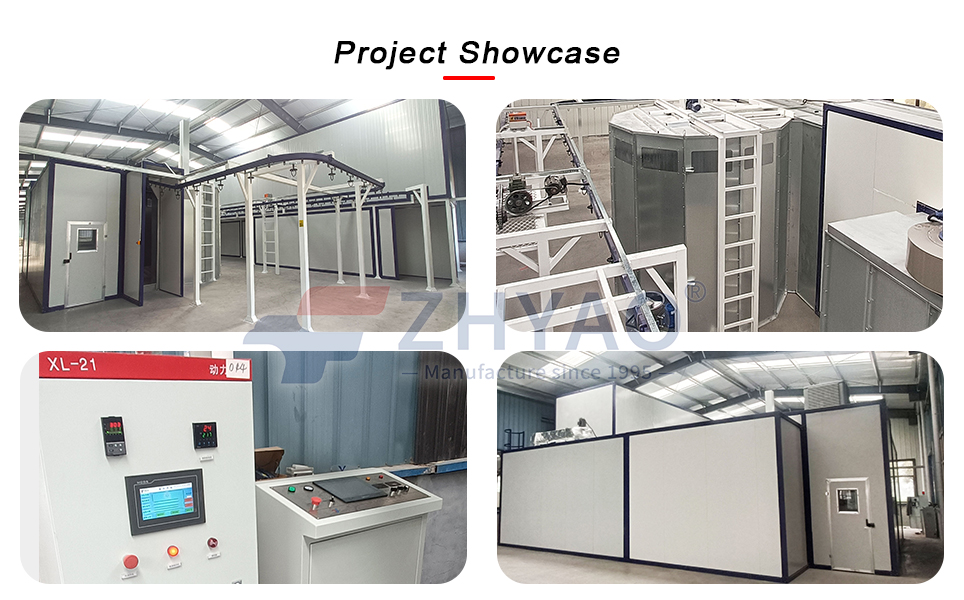

Project Experience

ZHYAO has delivered fully automatic liquid painting systems for manufacturers across multiple industries.

Our engineering solutions focus on improving coating consistency, reducing labor costs, and optimizing paint utilization while ensuring stable long-term production performance.

Service & Support

We provide full engineering support throughout the project lifecycle:

System design and factory layout planning

Equipment manufacturing and integration

Installation and commissioning

Operator training

Technical support and upgrades

FAQ

Q1: What is a fully automatic liquid painting line?

It is a complete industrial coating system that automates liquid paint spraying, drying, and conveying processes for continuous production.

Q2: What industries use this system?

It is widely used in furniture, automotive, machinery, steel structures, and appliance manufacturing.

Q3: What is the advantage over manual painting?

It improves coating consistency, reduces labor costs, and increases production efficiency.

Q4: Can it handle different paint types?

Yes, the system can be configured for various liquid coatings depending on process requirements.

Q5: Is the system customizable?

Yes, each line is designed based on product size, coating requirements, and factory layout.

Looking for a reliable fully automatic liquid painting solution for industrial production?

Contact ZHYAO engineering team to get a customized turnkey liquid painting line.
