Products Description
Overview
The overhead chain conveyor system is one of the most widely used transport solutions in powder coating production lines. It is designed for continuous movement of workpieces through different process stages such as pre-treatment, powder coating, curing, and cooling.
The system ensures stable operation, efficient material handling, and flexible layout design for various industrial coating applications.
Working Principle

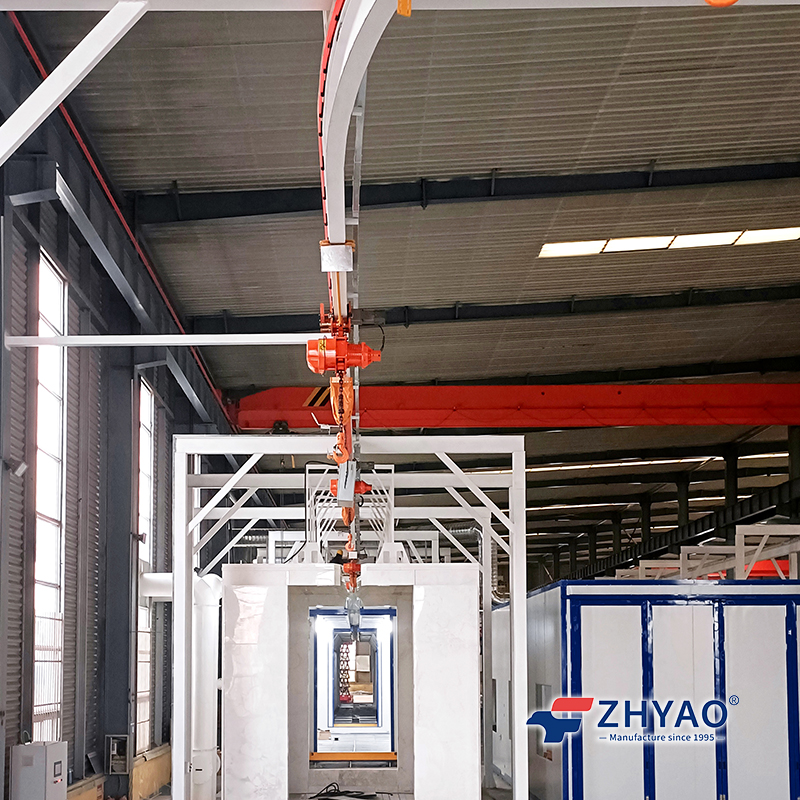

The system uses a continuous overhead chain driven by a motor and gearbox unit. Workpieces are hung on carriers (hooks or trolleys) and move along the closed-loop track.
Depending on the production requirement, the system can be designed as a single-loop or multi-loop conveyor line.
Key Features
Stable continuous operation
High load-bearing capacity
Flexible layout design (straight / U-shape / multi-loop)
Suitable for heavy-duty industrial production
Easy integration with pre-treatment and curing ovens
Low maintenance and long service life
System Components

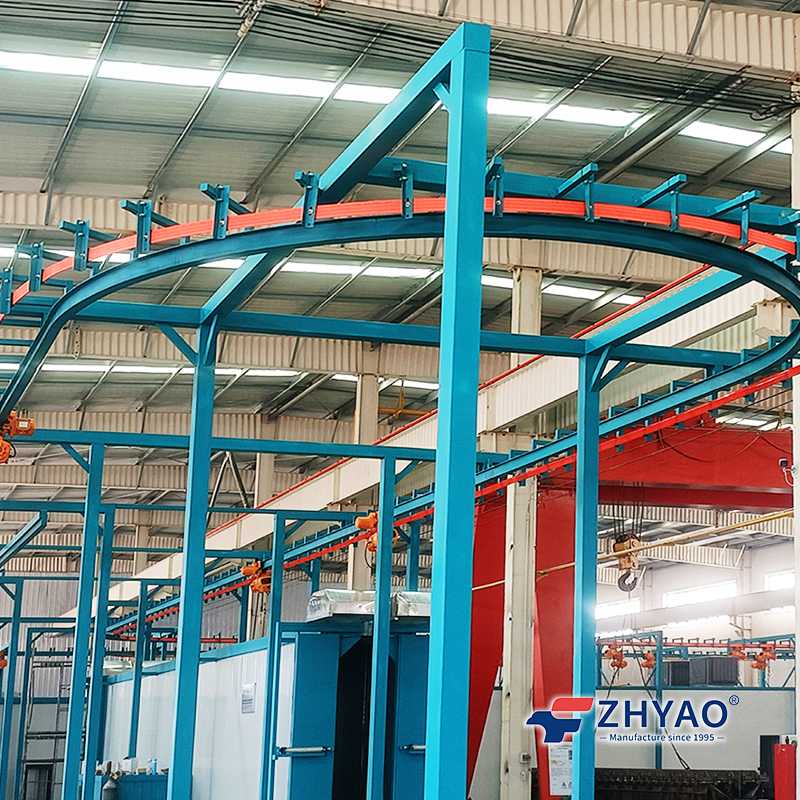

Overhead chain track
Drive unit (motor & gearbox)
Guide rails and support structure
Hanging carriers (hooks / trolleys)
Tensioning device
Electrical control system (PLC optional)
Technical Options
Conveyor type: Single chain / Double chain system
Speed control: Fixed speed / Variable frequency control
Load capacity: Customized according to workpiece weight
Layout: Straight / U-type / multi-loop
Automation level: Manual / Semi-automatic / Fully automatic
Application Range
Metal furniture
Steel structure components
Automotive parts
Aluminum profiles
Electrical cabinets
Industrial machinery parts
Why Choose Overhead Chain Conveyor System?
Compared with floor-based conveyor systems, overhead chain conveyors save ground space and allow more flexible factory layouts. They are especially suitable for large-scale powder coating production lines where continuous and stable material flow is required.
ZHYAO Engineering Solution
ZHYAO designs and manufactures customized overhead chain conveyor systems based on production capacity, factory layout, and coating process requirements. Our systems are widely used in turnkey powder coating line projects across global markets.
We focus on stable performance, efficient layout design, and long-term operational reliability.
Contact Us for Customized Solution
If you are planning a powder coating production line, ZHYAO engineering team can provide a tailored overhead chain conveyor system based on your factory requirements.
