When a factory plans to build a new powder coating production line, one of the first questions is: What equipment is required for a complete coating line?
A full coating line is not only a powder spray booth or curing oven. It is an integrated production system that connects surface preparation, coating application, curing, material handling, and process control. Each section works together to ensure stable coating quality, efficient production, and reliable operation.
For different industries and products, the configuration of a complete coating line may vary. Factors such as workpiece size, production capacity, coating requirements, available factory space, and automation level all influence the final design.
1. Pretreatment System: The Foundation of Coating Quality
The pretreatment system is the first important section of a complete coating line.
Before powder coating, metal surfaces need to be cleaned and prepared to remove oil, dust, rust, and other contaminants. Proper pretreatment improves powder adhesion and helps achieve better corrosion resistance.
A typical industrial pretreatment system may include:
Spray washing tunnels
Cleaning tanks
Rinsing sections

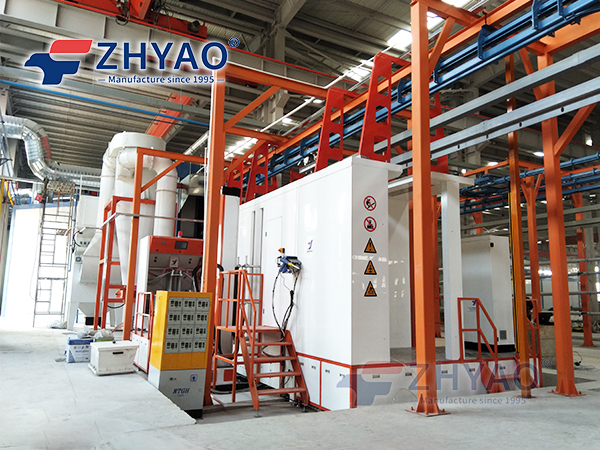

（Powder Coating System for Samsung Lighting Products）
Conversion coating process
Drying section
Different products require different pretreatment methods. For example, aluminum profiles, steel structures, automotive parts, and hardware products may use different chemical processes according to their surface conditions and final requirements.
A well-designed pretreatment system helps reduce coating defects caused by poor surface preparation.
2. Drying Oven: Removing Moisture Before Powder Application
After pretreatment, workpieces usually enter a drying oven.
The main function of the drying oven is to remove remaining water from the surface before powder spraying. If moisture remains on the workpiece, it may affect powder adhesion and create coating problems.
The drying oven normally includes:
Heating system
Air circulation system
Temperature control system
Insulated oven chamber
For continuous production lines, the drying oven is integrated with the conveyor system to maintain a stable production flow.
3. Conveyor System: Connecting Every Production Process
The conveyor system is the transportation system of a complete coating line.
It moves workpieces through each process section, including pretreatment, drying, powder spraying, curing, and cooling.
Common conveyor types include:
Overhead conveyor systems
Power and free conveyors
Floor conveyors
A suitable conveyor design depends on:
Workpiece weight
Product dimensions
Production speed
Factory layout
An optimized conveyor system improves production efficiency and reduces manual handling requirements.
4. Automatic Powder Coating Booth: The Core Coating Area
The powder coating booth is the main working area where electrostatic powder spraying takes place.
In an automated powder coating system, automatic spray guns are installed on reciprocators or robotic equipment to provide consistent coating coverage.
A complete automatic powder coating booth usually includes:
Spray booth chamber
Automatic powder spray guns
Reciprocators
Powder supply system
Powder recovery system
The electrostatic spraying process charges powder particles, allowing them to attach to grounded metal workpieces before curing. Powder recovery systems help collect unused powder and improve material utilization.
For factories producing multiple colors, quick color change designs can help reduce production downtime.
5. Powder Recovery System: Improving Powder Utilization
Powder recovery is an important part of modern powder coating lines.
During spraying, not all powder attaches to the workpiece. The recovery system collects excess powder and separates reusable powder from waste.
Common recovery equipment includes:
Cyclone recovery system
Cartridge filter recovery system
Powder center
A good recovery design helps reduce powder consumption and keeps the spraying environment cleaner.
6. Curing Oven: Creating the Final Coating Performance
After powder application, coated parts enter the curing oven.
The curing process heats the powder coating to a specific temperature, allowing the powder particles to melt, flow, and form a durable coating film.
A curing oven generally includes:
Heating system
Hot air circulation system
Temperature control system
Insulated structure
The oven design needs to match the powder type, workpiece thickness, production speed, and required curing temperature.
Temperature uniformity inside the oven is especially important because uneven heating may lead to incomplete curing or inconsistent coating quality.
7. Cooling Section and Unloading Area
After curing, products need to cool down before inspection, packaging, or further assembly.
The cooling section may include:
Cooling tunnel
Air circulation system
Product unloading area
A properly designed cooling section improves production safety and allows operators to handle finished products efficiently.

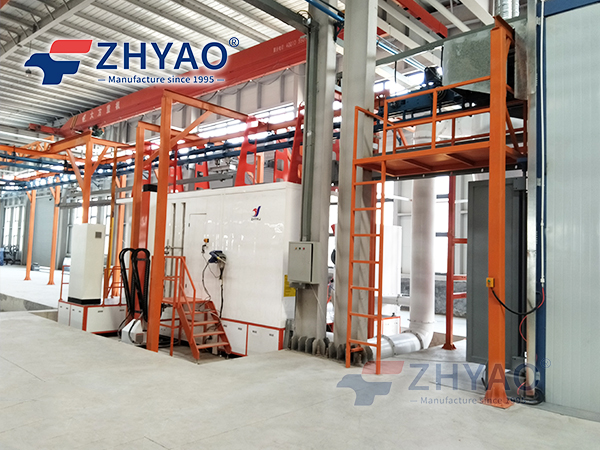

（Powder Coating System for Samsung Lighting Products）
8. Electrical Control System: Managing the Entire Production Line
Modern automated powder coating systems use PLC control technology to coordinate different equipment sections.
The control system can manage:
Conveyor speed
Oven temperature
Spray gun operation
Production parameters
Equipment alarms
A centralized control system helps operators monitor production status and improve process stability.
9. Optional Equipment for Different Production Requirements
Depending on the product and production goals, some factories may add additional equipment:
Automatic Loading and Unloading System
Suitable for high-volume production where reducing manual handling is important.
Powder Management System
Used for factories with frequent color changes or large powder consumption.
Robot Coating System
Suitable for complex-shaped products requiring flexible spraying paths.
Water Treatment System
Used when the pretreatment process requires wastewater management.
How to Choose the Right Complete Coating Line Configuration?
There is no single standard configuration for every factory.
A suitable complete coating line should be designed according to:
Product size and material
Required production capacity
Number of colors
Coating thickness requirements
Available factory space
Level of automation
For example, a small hardware factory may need a compact automatic powder coating system, while an automotive parts manufacturer may require a higher-capacity industrial powder coating line with advanced automation.
The right equipment combination helps balance investment cost, production efficiency, and long-term operating performance.
Building a Complete Automated Powder Coating System with Professional Design Support
A complete coating line requires the integration of multiple equipment sections rather than individual machines working separately.
From pretreatment and powder spraying to curing and control systems, every part affects the final coating result.
With experience in industrial coating equipment design, ZHYAO provides customized automated powder coating systems based on customers' products, production requirements, and factory conditions. The solution includes equipment design, manufacturing, installation guidance, and commissioning support.
A properly designed powder coating production line helps manufacturers improve coating consistency, optimize production processes, and create a more efficient finishing operation.
Frequently Asked Questions
1. What equipment is included in a complete powder coating line?
A complete powder coating line usually includes a pretreatment system, drying oven, conveyor system, automatic powder coating booth, powder recovery system, curing oven, cooling section, and electrical control system.
2. Can a powder coating line be customized for different products?
Yes. Powder coating lines are normally designed according to product dimensions, production output, coating requirements, factory layout, and automation needs.
