Project Overview

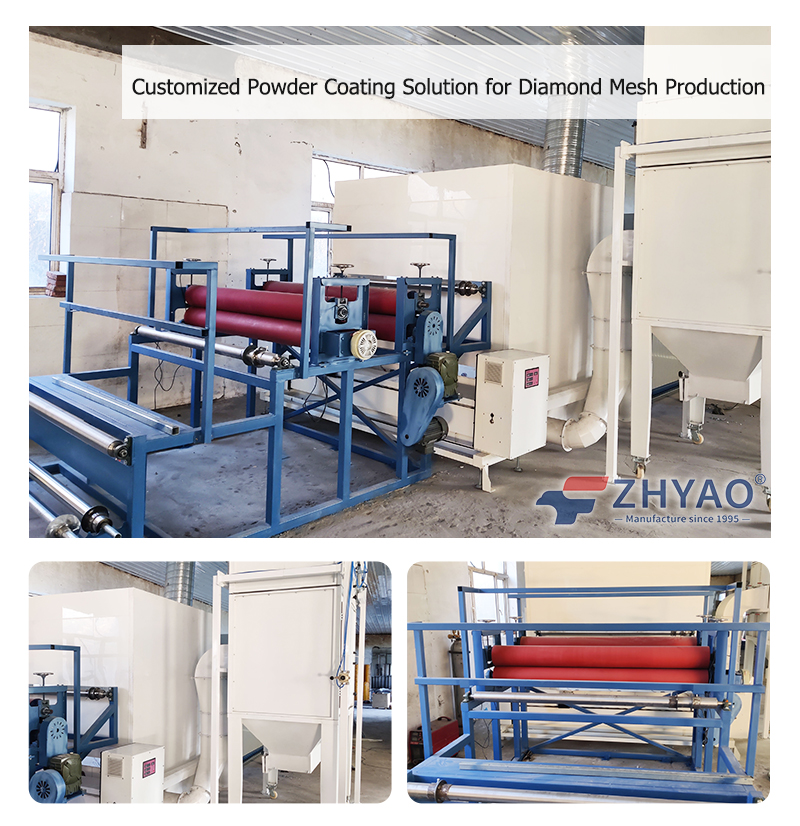

This project was implemented in Jilin, China, focusing on a stainless steel security mesh coating system (commonly known as diamond mesh coating equipment).
The production line is designed for surface coating of metal mesh products used in security doors, windows, fencing systems, and industrial protective applications.
The client required a stable coating solution capable of handling continuous mesh material with uniform coating coverage, consistent film thickness, and improved production efficiency.
ZHYAO developed a customized powder coating system integrating pretreatment, automated spraying, curing, and continuous conveying technology for mesh-based products.
Customer Requirements
During the project evaluation phase, the following requirements were identified:
Suitable for continuous mesh material processing
Uniform powder coating on both sides of mesh structure
Stable production flow for long-length workpieces
Reduced manual spraying operations
Consistent coating thickness and adhesion performance
Adaptability for different mesh specifications
The main technical challenge was achieving uniform coating on open-grid structures while maintaining stable continuous production.
Engineering Solution
Based on product characteristics, a dedicated mesh coating system was designed:
1. Continuous Pretreatment System
A surface cleaning process was applied to remove oil, dust, and impurities from stainless steel mesh before coating, ensuring proper adhesion performance.
2. Mesh Powder Coating Section
An optimized spraying configuration was designed for open-grid structures. Spray positioning and airflow control were adjusted to ensure powder penetration and uniform surface coverage.
3. Curing System
A tunnel-type curing oven was used to support continuous production, ensuring stable temperature distribution and consistent curing results for long mesh sections.
4. Continuous Conveyor System
A specially designed conveying system was implemented to support stable movement of flexible mesh materials, ensuring smooth and uninterrupted production flow.
Technical Advantages
Stable coating performance for mesh and grid structures
Improved uniformity on open-surface workpieces
Continuous production capability for long materials
Reduced manual spraying dependency
Improved coating efficiency for high-volume production
Enhanced corrosion resistance and surface durability
The system is designed to maintain stability in continuous industrial operation environments.
Application Scope
This coating system is suitable for:
Stainless steel security mesh
Diamond mesh
Protective window mesh
Fence mesh systems
Industrial protective grid materials
These products require both corrosion resistance and stable surface finishing performance.
Project Value
After system commissioning, the production line achieved:
More stable coating coverage on mesh structures
Improved production continuity for long materials
Better consistency in coating thickness distribution
Reduced process interruptions compared to manual spraying
The system provides a foundation for scalable production based on future demand.
Service & Support
To ensure stable long-term operation, ZHYAO provides full-cycle technical support:
Installation & Commissioning Support
Engineering guidance is provided for system installation, layout verification, and production startup.
Operator Training
Training covers equipment operation, production adjustment, routine maintenance, and basic troubleshooting for mesh coating processes.
Technical Support
Remote and on-site technical assistance is available to support production stability and process optimization.
Maintenance Guidance
Maintenance documentation and technical recommendations are provided to support long-term stable operation and reduce downtime risk.
The Jilin stainless steel security mesh coating project demonstrates the engineering adaptability of powder coating systems for continuous mesh-type materials.
By integrating pretreatment, optimized spraying design, curing technology, and continuous conveying systems, the production line achieves stable and repeatable coating performance for diamond mesh products.
